Installation (continued)
6

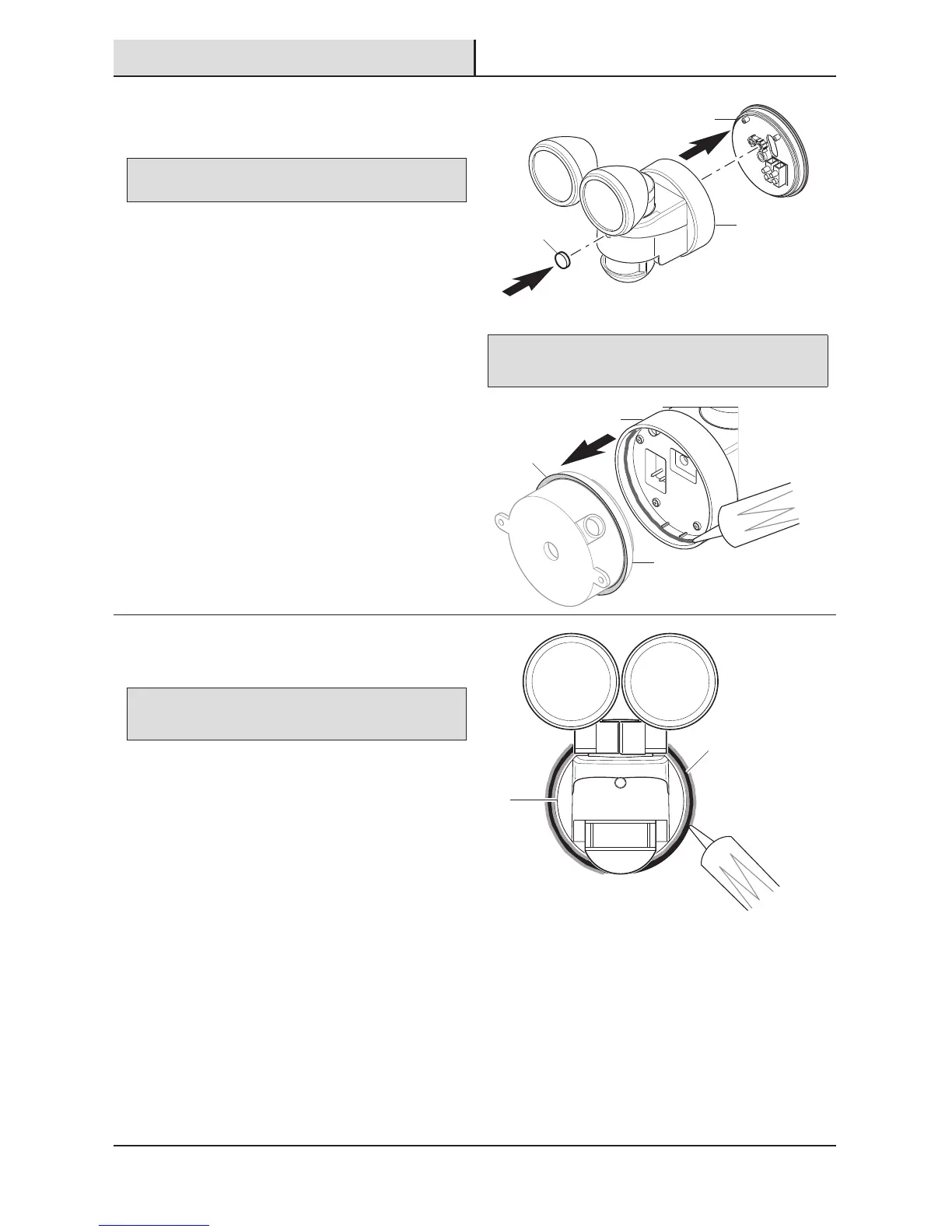

Mounting the light fixture
NOTICE: The two pins on the rear of the light xture must be
inserted into the terminal block for the light to work.
□ Align the top edge of the light xture (B) with
the top edge of the mounting plate(D). Tilt the
light xture (B) toward the mounting plate (D),
making sure the light xture (B) is centered on
the mounting plate (D).
□ Tighten the large mounting bolt (EE) securely
through the center of the mounting plate(D). Do
not overtighten.
□ Push the rubber plug (AA) rmly into the
mounting bolt hole on the light xture (B).
NOTICE: When attaching this light to an external, surface mount
junction box, caulk around the inside of the light xture (B) before
attaching to the mounting plate (D).
7
Caulking around the light
fixture
IMPORTANT: Failure to completely caulk around the gasket (HH)
and the mounting plate (D) could lead to water damage and is not
covered under warranty.
□ Caulk around the gasket (HH) and mounting
surface with silicone sealant (not included).
□ Caulk around the mounting plate (D) and
gasket (HH) with silicone sealant (not
included).
D
D
B
B
D
AA
HH
HH
