19
812.8 mm
[32"]

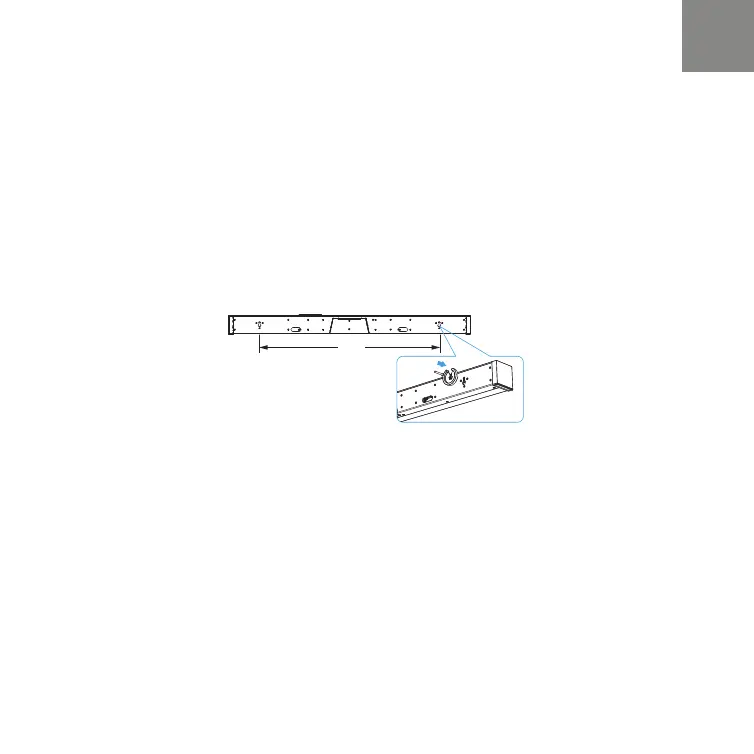

MOUNTING THE STUDIO ADVANCE ON THE WALL
The Studio Advance has built-in keyhole slots so you can wall-mount it beneath your wall-mounted
television. Spacers are included to help secure and install your Studio Advance on the wall.
NOTE: DO NOT mount the Studio Advance directly to the wall. You must use the supplied wall-
mount spacers to ensure proper operation and reliability. DO MAKE SURE you are using a wall
anchor of suitable load-bearing capacity (13.65 lb).
TIPS FOR WALL MOUNTING THE STUDIO ADVANCE
Leveling the Studio Advance: Use a bubble level to make sure the bar is level. Mark holes with
pencil, taking the keyhole slot measurement from the bar.
Drill Screw Holes in Wall: Pre-drill the pilot-hole locations for mounting screws (not included). Use screws
rated to hold securely in the wall material and have screw heads at least 0.33” (8.5 mm) in diameter.
NOTE: Measure Twice. Make sure the sound bar clears the ceiling, adjacent walls, corners, beams,
lighting xtures and door/window frames. Leave at least 1-2” (25-50 mm) above the Studio
Advance location to allow the Studio Advance to slide onto the screws. Make sure the center of
the bar is centered with the TV screen’s center point.
Hang the Studio Advance on Posts: Line up the bar so that the screw heads slide into the keyhole
slots. Slide the bar down so the screw heads hold the bar rmly in place.
