Definox Sorio Basic 3EV User Manual

NI-268 index 1 June 2021

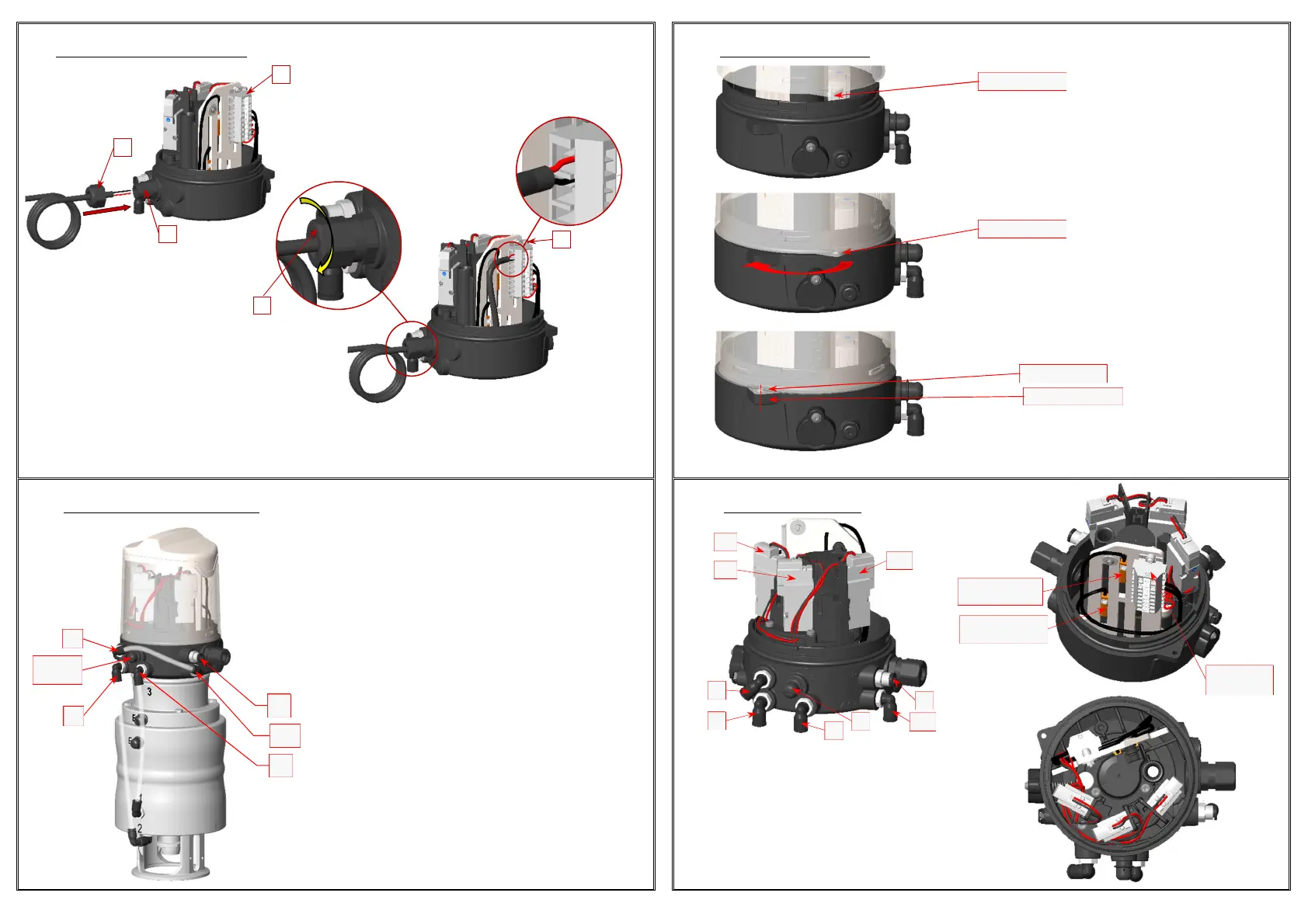

 Assembly Cable / Cable gland
• Unscrew the nut [B] from the cable gland [C].
• Pass the connection cable inside the nut, then the cable gland to connect it to the terminal block [D].
• Tighten the nut [B].
• Connect the connections to the terminal block.

Reassembling the cover
• Position the cover in the notch on the base. Fin in the alignment above.
• Press the cover onto the base.
• Lock by turning the cover clockwise until the fins of the cover and the base are aligned.
 Pneumatic connexion on VEOX  Sorio® Basic 3EV unit 
EV1: Solenoid valve
EV2: Solenoid valve
EV3: Solenoid valve
1: Main actuator air inlet
2: Upper valve actuator air inlet
3: Lower valve actuator air inlet
E: Exhaust
P: Air pressure
ACT: Exhaust or air intake
• Apply pressure to the channel [P].
• Connect channel [1] of the main actuator to channel
[1] of the unit.
• Connect the channel [2] of the upper valve actuator to
the channel [2] of the unit.
• Connect channel [3] of the unit to channel [ACT] of
the unit for the bottom valve actuator.
• Put a pierced plug on the channel [E] of the unit.
EV2
EV1
3
2
EV3
P
ACT
E
1
B
D
Cover fin
Cover fin
Cover fin
Base fin
3
P
Pierced
plug
2
ACT
1
C
Sensor
High Position
Sensor
Low Position
Terminal
block 3EV
D
B
