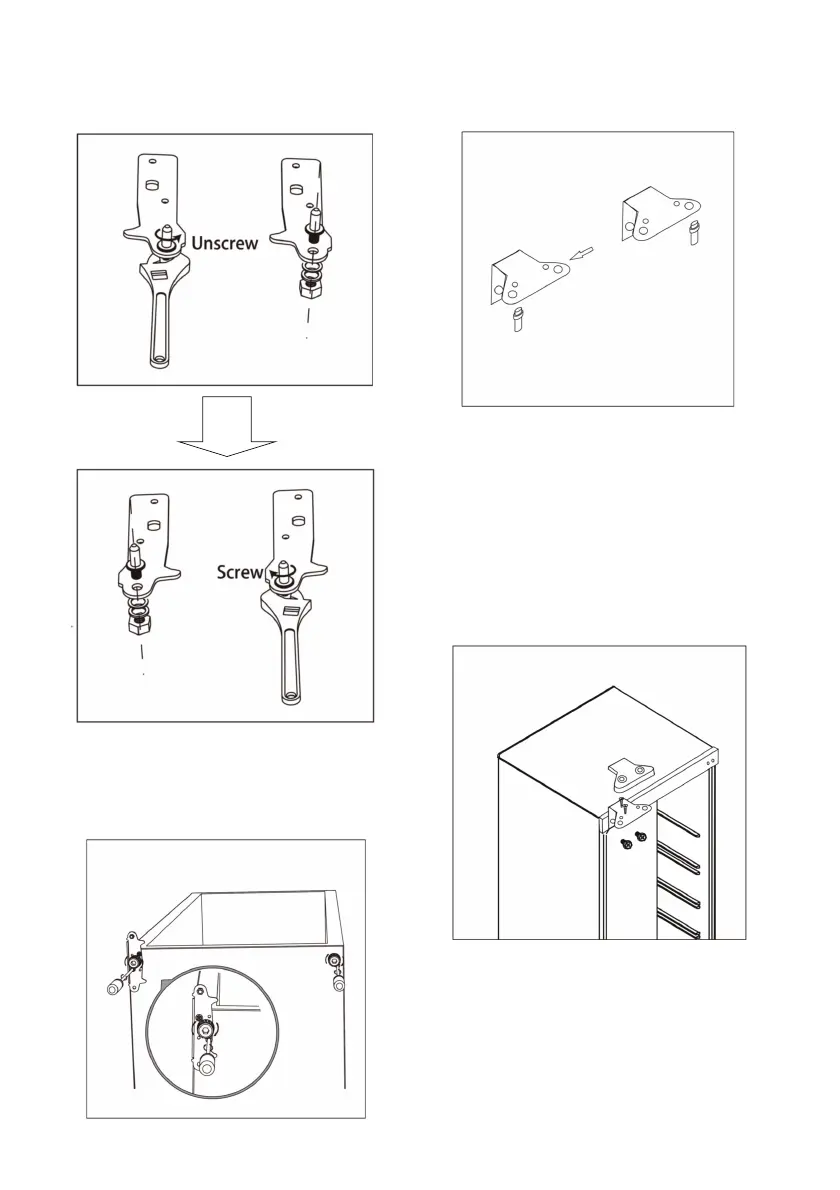

5. Unscrew and remove the bottom hinge
pin,
flip the
bracket over and refit it.
8. Stand the unit upright and fit the door
onto the bottom hinge. Ensure the bottom
hinge pin is inserted in the door hole.
Then fit the upper hinge to the door.
Before tightening the upper hinge, try and
open the door to check whether the
cabinet is sealed well. Finally, screw the
hinge cover to the hinge.
6. Fit the hinge to the top left side and fit
the foot base to the right side. Then fit the
two levelling feet together with their
original parts.
7.Unscrew the top hinge pin and mount it
to the left hole.
