4.1.2 Fast mode

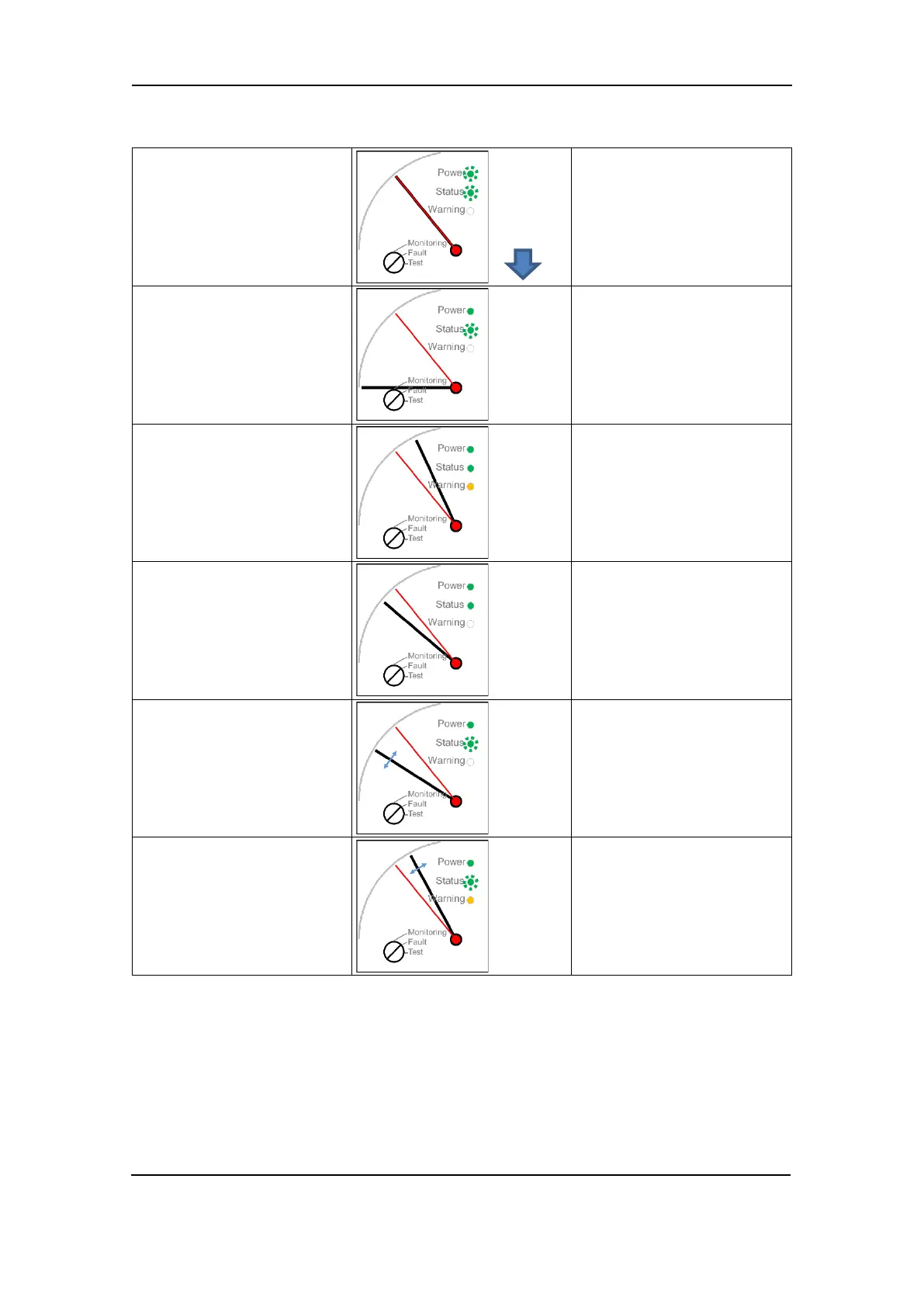

Power up in fault finding mode
Show set point
Power LED is flashing
Status LED is flashing (0.5 Hz 50 %
duty cycle)
Meter shows the set point
Relay is deactivated
Warning LED is off
“Power-up set point” is programmable
in the range 0 to 30 s. Default = 15 s
Change from other state to fault
finding mode
Power LED is on
Status LED is flashing
Warning LED is off => no insulation
error
Meter shows unlimited insulation
resistance
Relay is deactivated
Measured insulation resistance is
lower than set point and input is
steady
Power LED is on
Status LED is on => valid data
Warning LED is on => insulation error
Meter shows the measured insulation
resistance
Relay is activated
Measured insulation resistance is
higher than set point and input is
steady
Status LED is on => valid data
Warning LED is off => no insulation
error
Meter shows the measured insulation
resistance
Relay is deactivated
Measured insulation resistance is
higher than set point but is not
steady
Insulation resistance is changed more
than 1 %/min.
Power LED is on
Status LED is flashing => resistance is
not steady. The more constant the
light, the closer to a valid result
Warning LED is off => no insulation
error
Meter shows the measured insulation
resistance
Relay is deactivated
Measured insulation resistance is
lower than set point but is not
steady
Insulation resistance is changed more
than 1 %/min.
Power LED is on
Status LED is flashing => resistance is
not steady. The more constant the
light, the closer to a valid result
Warning LED is on => insulation error
Meter shows the measured insulation
resistance
Relay is activated
