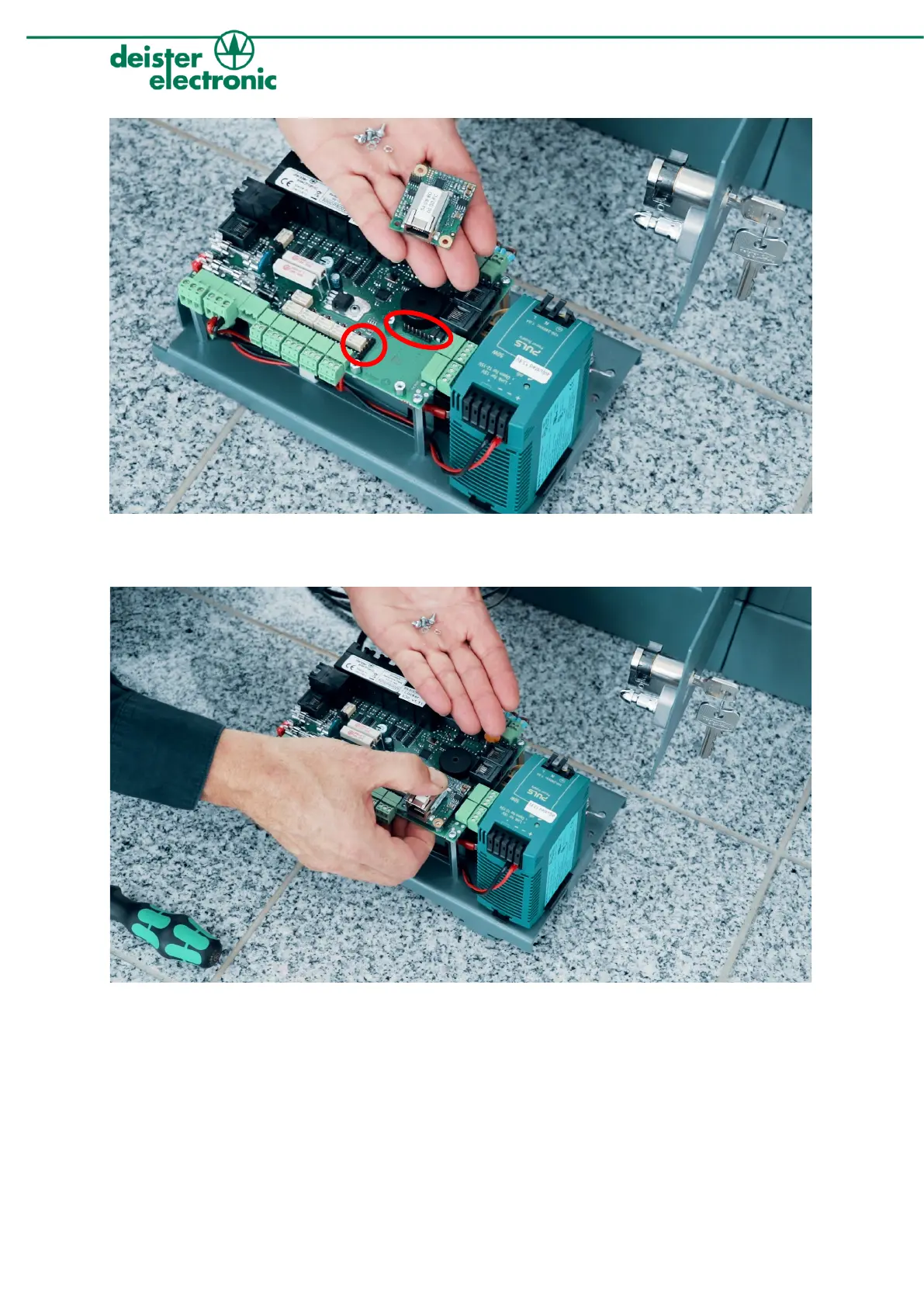

3. The next step requires the Ethernet adapter module - DEA 1 - with its corresponding screws and washers
to connect it to the corresponding contacts on the circuit board (View the red marks in the image).
4. Put the adapter on the circuit board as shown in the image. Press the adapter slightly down until it lies on
the corresponding contacts on the circuit board.
