locker-manual_en_896328_v200915

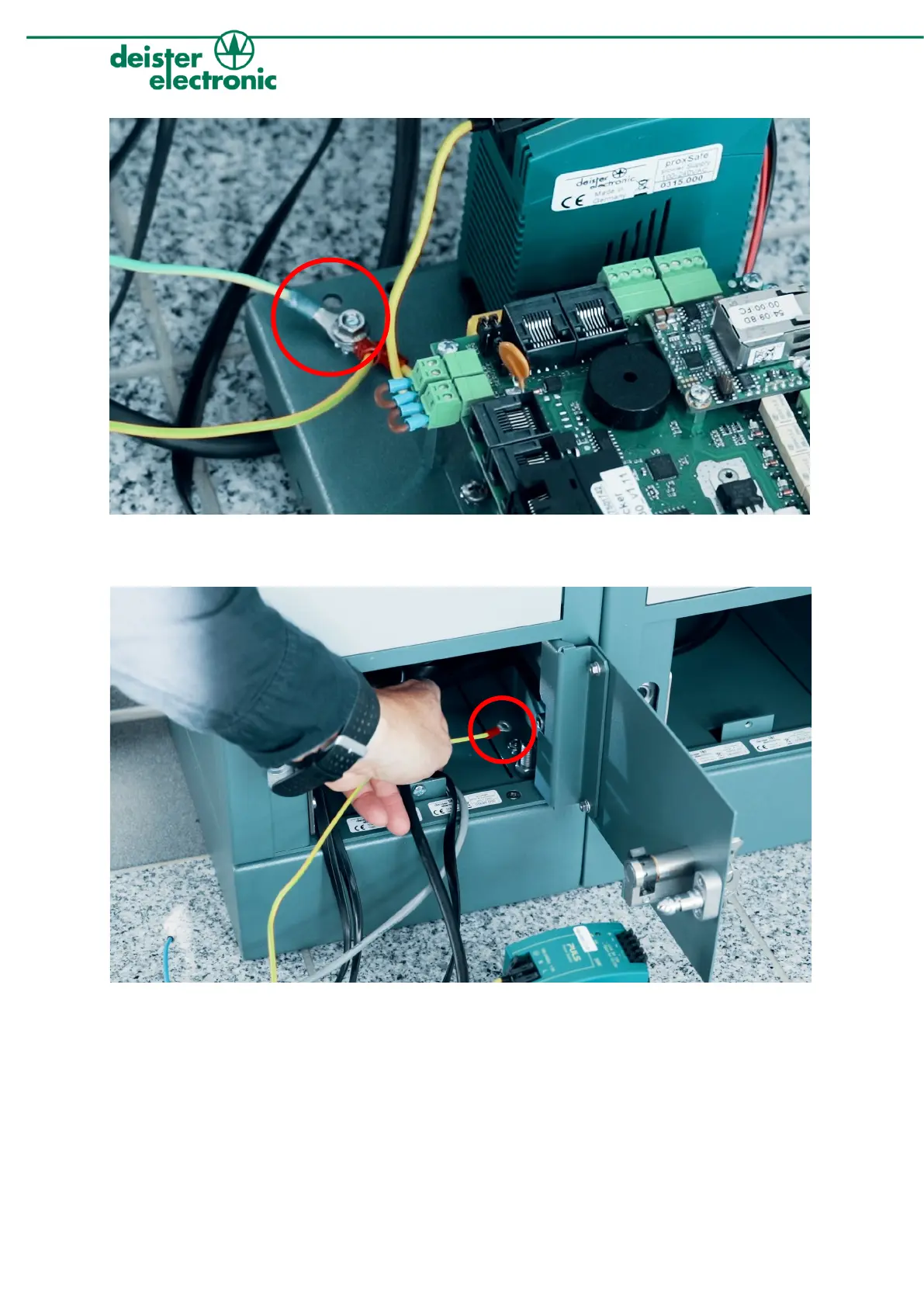

7. The grounding cable has a blue terminal (view image). It is put above the existing cables with red termi-
nals and secured with the loosened hex nut.
8. Afterwards, guide the cable with the red terminal back into the service compartment. Remove the hex nut
from the thread, put the cable on it and secure it again with the hex nut.
