4.8 TURN-ON PROCEDURES
To turn-on the Mini-Repeater, proceed as follows:
Notes
Do not operate the Repeater without terminating the antenna connections
with actual antennas or proper dummy loads.
The High selectivity Mini-Repeater is provided set to maximum gain and
maximum output power.
1. Verify that the RF cables are connected to the proper BASE
and MOBILE connectors
2. Connect the AC connector of the DC power supply unit to
the Mains (110V/220 VAC). The Repeater is turned on
Note
Maximum consumption power: 35W.
3. At turn on, the front panel shows the built-in test
procedures: the LEDs (DL, Power, UL) turn from Orange to
Red to Green (see Figure 6)
4. If all the functions operate properly, all three LEDs shall lit
green
5. In case you want to operate in a lower output power than
specified, insert a flat screwdriver in the upper knob on the
front panel and set to the required output value.
Whenever the LEDs are lit differently, they indicate a malfunction. Refer to
paragraph 7.4 for troubleshooting.

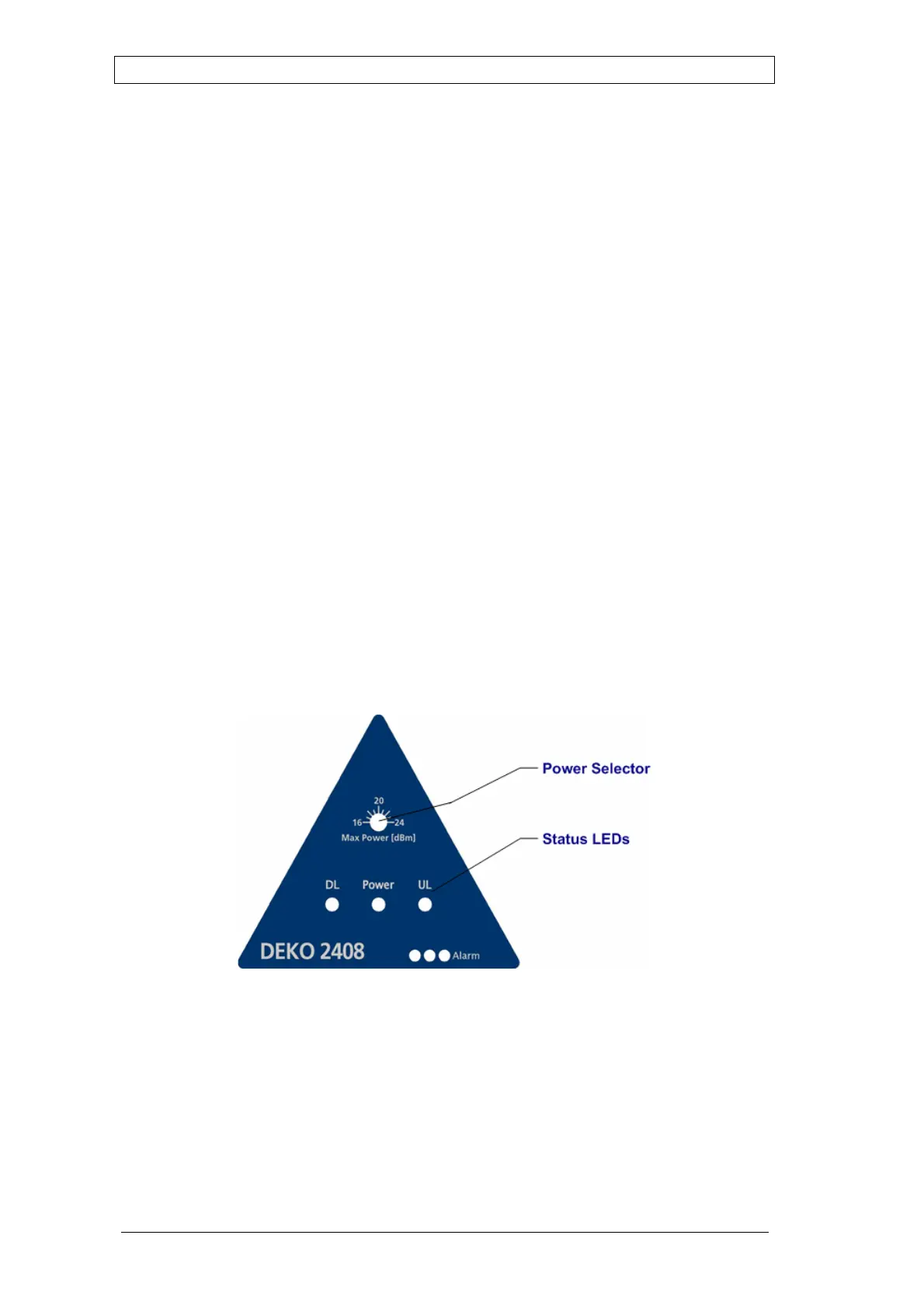

Figure 6: Mini Repeater – Indicators Panel
