7.5.3 Channeler Alarms
The Channeler alarms are provided for the Downlink and the Uplink paths.
The troubleshooting procedures for these alarms follow.

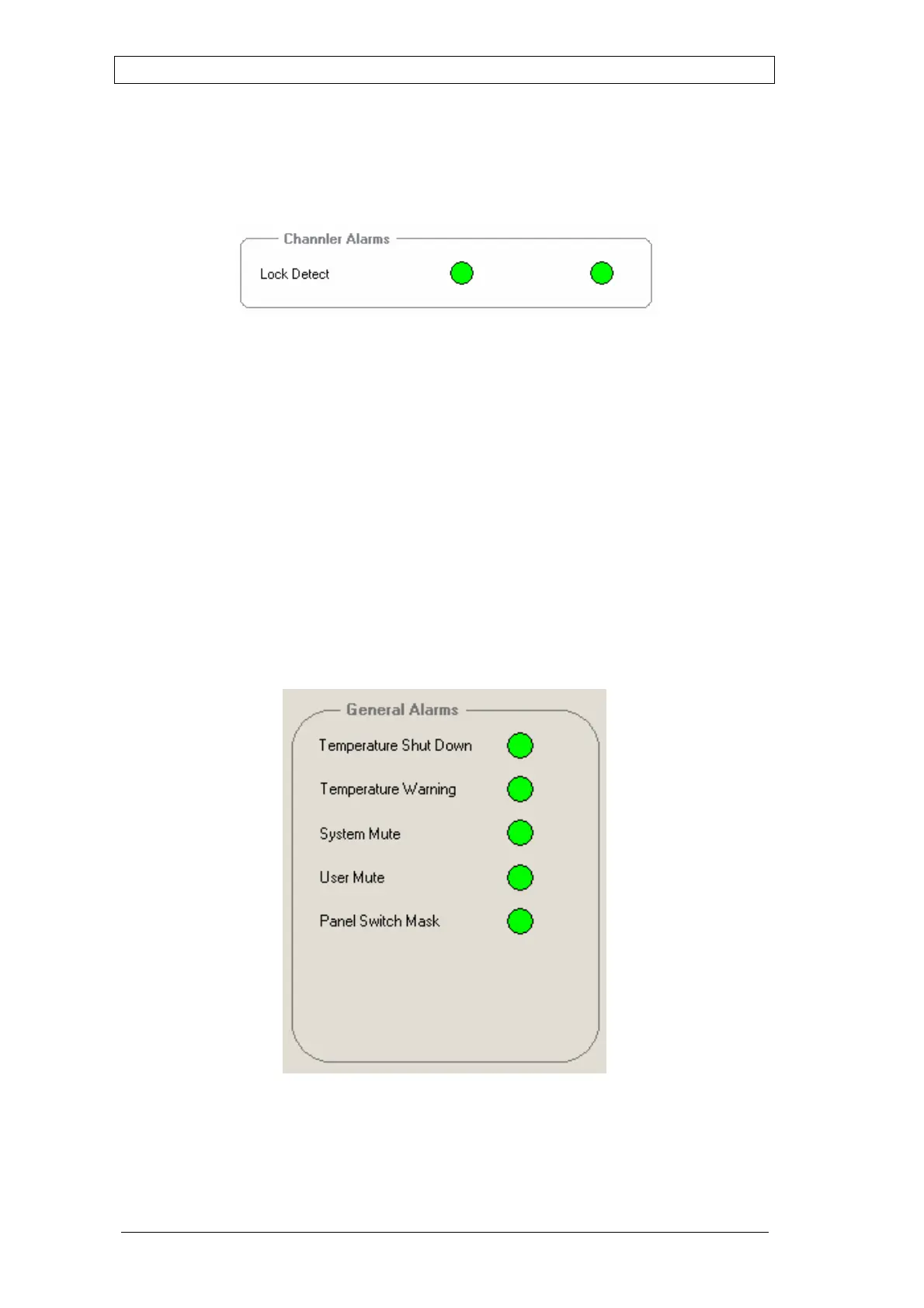

Figure 29: Mini-Repeater - Channeler Alarms
7.5.3.1 Lock Detect
This LED shows malfunction similarly for the Downlink and Uplink paths.
Most probable cause: Downlink (Uplink) Channeler module lock-detect
failure.
Corrective action: Check the LEDs in the Mini-Repeater. See
paragraph 7.4.
7.5.4 General Purpose Alarms
The general purpose alarms are provided for the Mini-Repeater as a unit, and
are not linked to the operation of the Downlink or Uplink paths.
The troubleshooting procedures for these alarms follow.
Figure 30: Mini-Repeater – General Purpose Alarms
