Delaney KP300 - Prepare for Touchpad Assembly; Install Cylinder into Touchpad Assembly

7
11
12
13

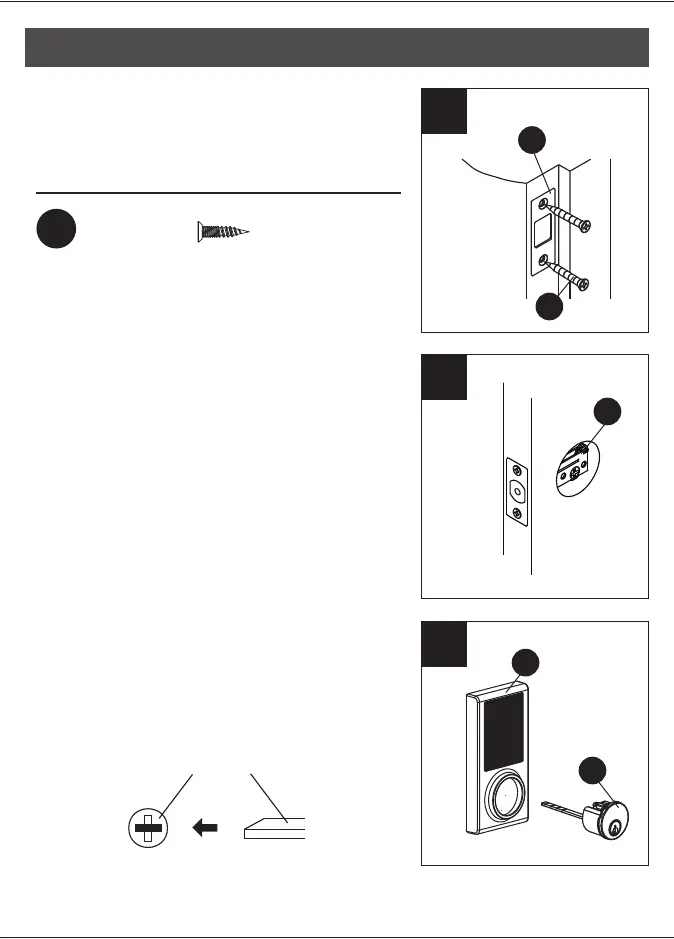

11. Install Strike on Door Frame
Install the strike plate (E) into your door frame
and tighten with wood screws (K).
12. Install Touchpad Assembly
Make sure the latch bolt is retracted.
13. Install AssemblyTouchpad
touchpadInstall cylinder (B) into the deadbolt
assembly (C) with tailpiece in horizontal
position inserted through hub of the latch.
E
K
D
ASSEMBLY INSTRUCTIONS
B
Hardware Used
K Wood screws x2
horizontal position
C
C
