DeLaval Multi rod reader User Manual

3.2 Scanning area

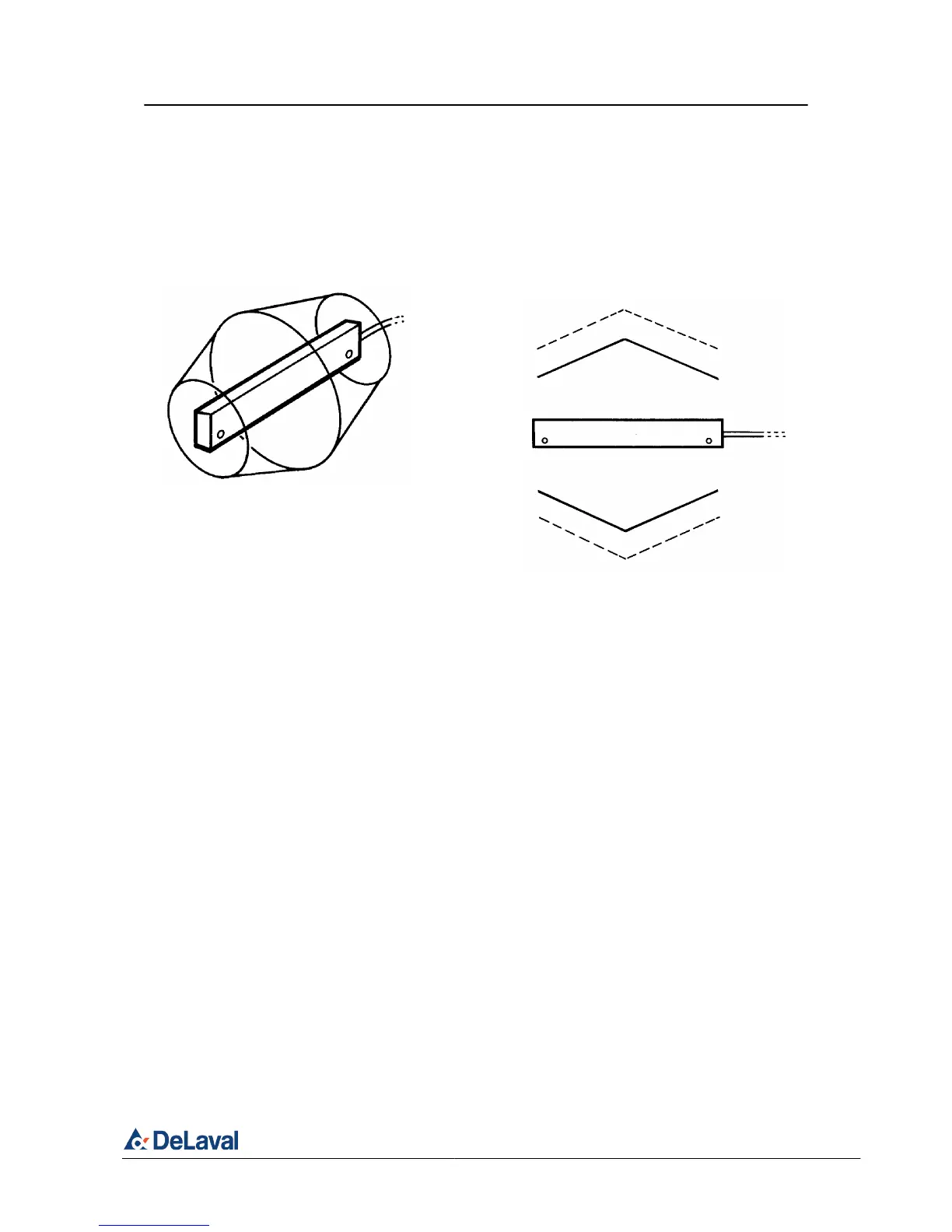

The scanning signal is best within the inner
measurements in the picture and acceptable up
to the outer measurements (dashed line).
400
300
300
400
300
200
300
200
200
300
200
300
214769
Fig. 6: Range of the reader (units in millimetres).
3.3 Cable
The cable (length - 6 m or 11 m) is connected to
the station controller. It is a 4-wire unshielded
cable:
n Power supply (red)
n Common/ground (black)
n Data signal (green)
n Clock signal/control (white)
DeLaval multi rod reader
General description
© DeLaval 2016.
2016-02-12, Version 4 14 (20) 89866301
