3 Mounting the reader
n Fasten and protect the reader cable carefully.
n If the reader is installed inside the pipe, leave
the pipe ends open.
If the pipe ends are sealed, water which pen-
etrates the pipe cannot drain off and may
damage the reader.
214771

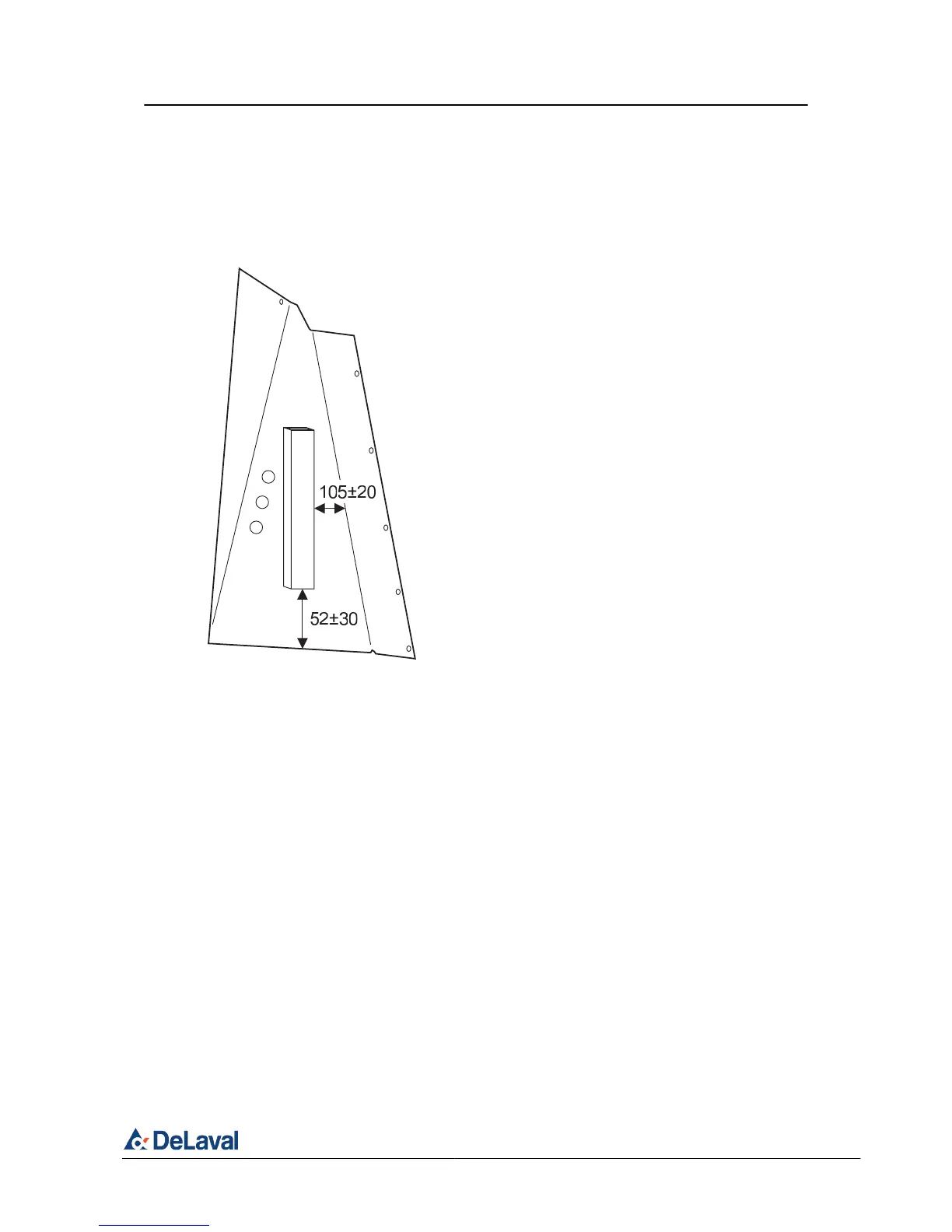

Fig. 8: (Units in millimetres).
DeLaval multi rod reader
Installation
© DeLaval 2016.
2016-02-12, Version 4 16 (20) 89866301
