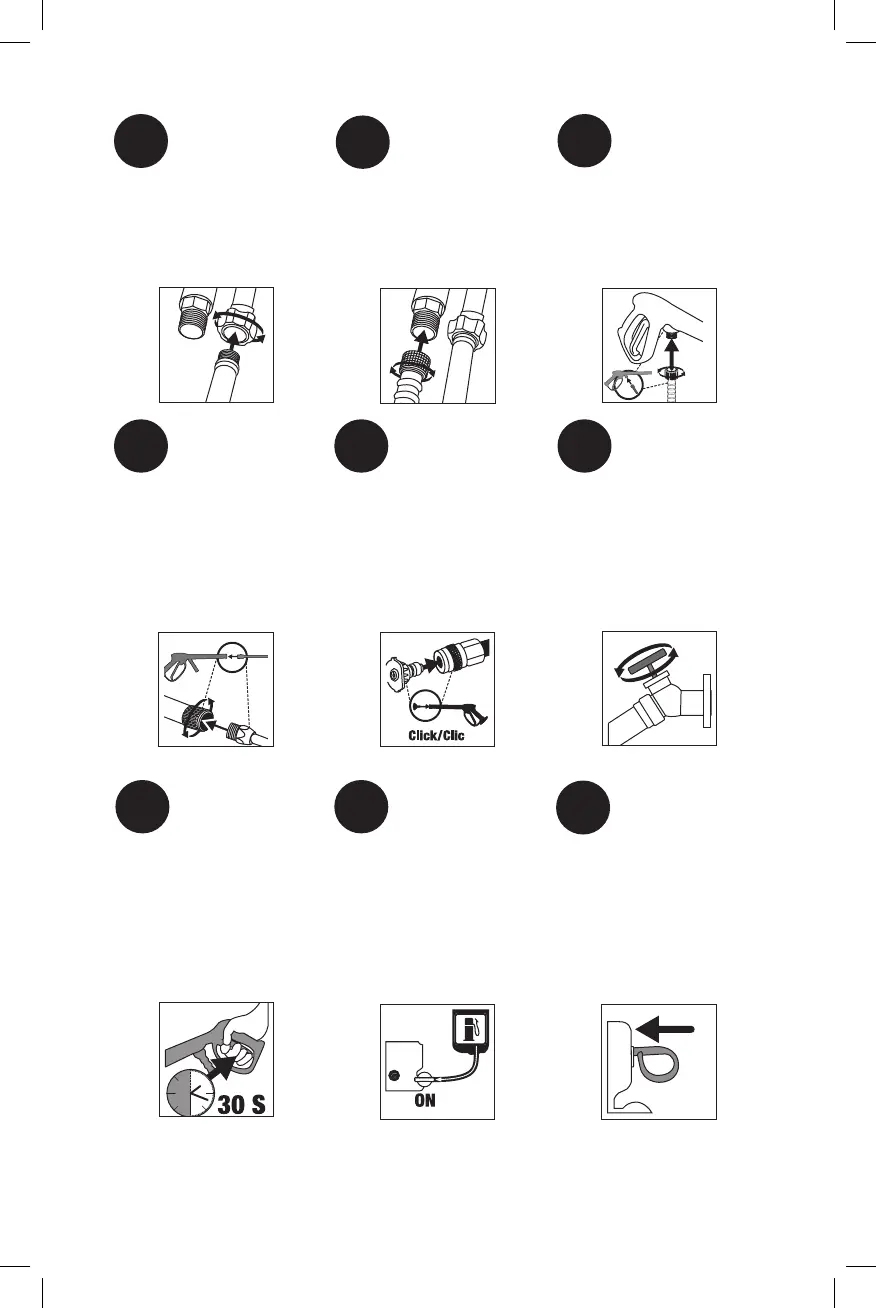

1
Connect Garden
Hose to Pump
Thread the
garden hose to
the pump inlet.
See Label #1 on the
front of the unit.
2
Connect High
Pressure Hose
to Pump
Thread the high pressure
hose to the pump outlet.
See Label #2 on the
front of the unit.
3
Connect High
Pressure Hose
to Spray Gun
Thread the other end
of the high pressure
hose to the spray gun.
4
Connect Spray
Wand to Spray
Gun
Thread the spray
wand into the end
of the spray gun.
5
Connect QC
Nozzles to Spray
Wand
Pull quick connect
coupler back and insert
nozzle. Release quick
connect coupler and
twist nozzle to make sure
it is secure in coupler.
6
Turn Water
Faucet
Completely On
Do not run the unit
without water supply
connected and turned
on. Use Cold Water Only.
7
Release Air
from System
Release all
air from pump and
high pressure hose by
depressing trigger until a
steady stream of water is
present. Approximately
30 seconds.
8
Verify the Fuel
Valve is turned
to the OPEN
Position
The Fuel Valve has been
preset by the factory to
be in the OPEN position.
See Label #8 on the
side of the engine.
9
Verify the Choke
Pin is Pushed In
to the CLOSED
Position
The Choke Pin has
been preset by the
factory to be in the
CLOSED Position.
See Label #9 on the
front of the unit.
