Delem DA-65 - Page 126

Delem
V1101, 5.4
Parameter 12: In position tolerance
Range : 1.0 - 999.0
Default : 1.0
Units : mm
Function
Zone in which the in-position output is active.
Description
Each axis has an in-position output. The parameter ‘In position tolerance’ defines the zone in
which this output is active. The output is active when:
Programmed value - actual value < +/- In position tolerance

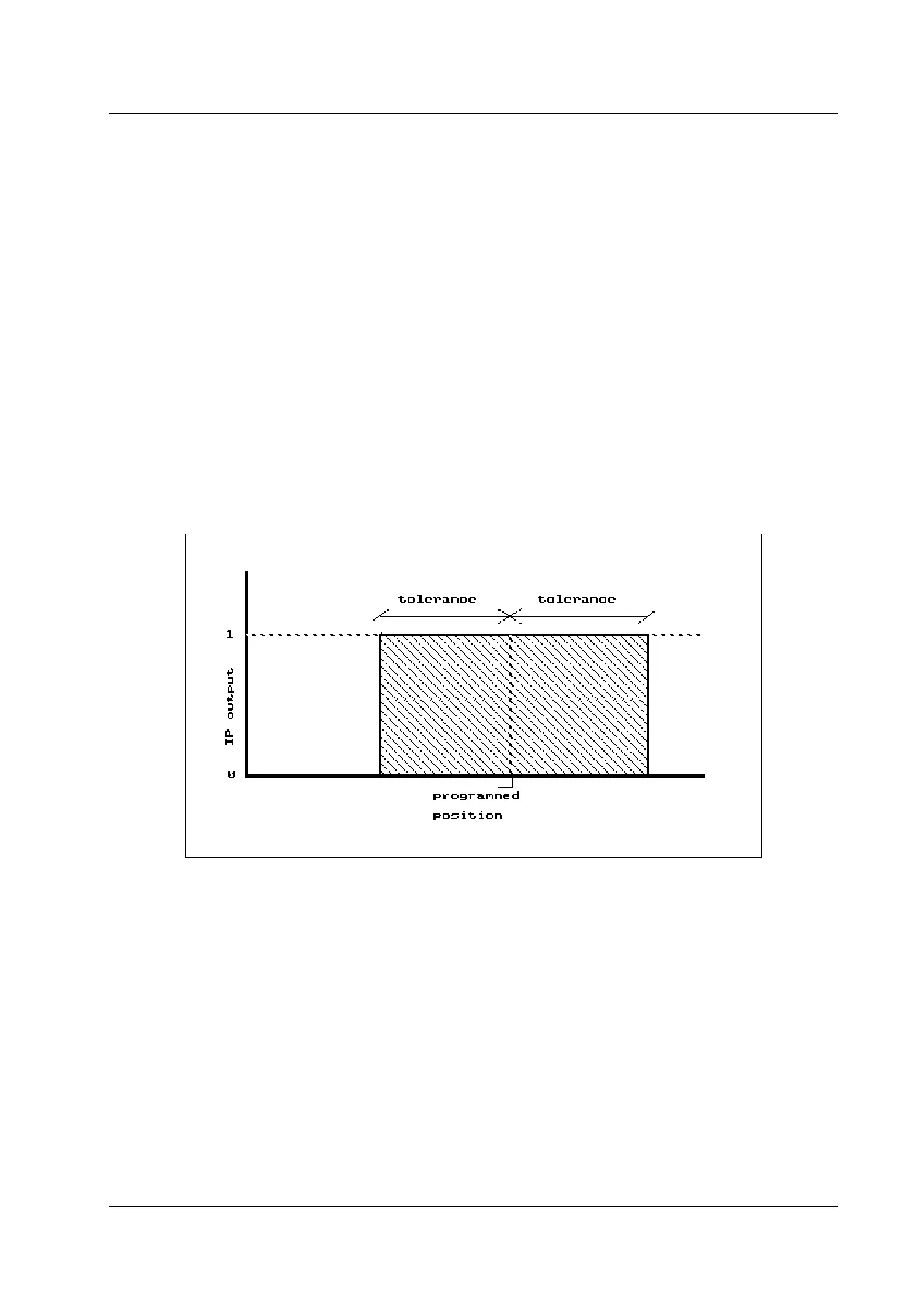

Figure 5.2.a
