Delem
V1101, 5.21
Parameter 27: Correction (X)
Range : -9.999 - +9.999
Default : 0.000
Units : mm / 100mm
Remark : In case of R-, R1-, R2-axes.
Function
To compensate for mechanical deviations during X-axis movements.
Description
When the X-axis moves to another position it is possible that the R (R1,R2)-axis position
changes. You can use this parameter to program a position correction.
See figure 4.2j how to program the parameter. Notice the sign of the parameter value!
Correction (x) = measured value - programmed value
Example
= 80mm - 82mm = -2 mm/ 50mm
= -4 mm / 100 mm

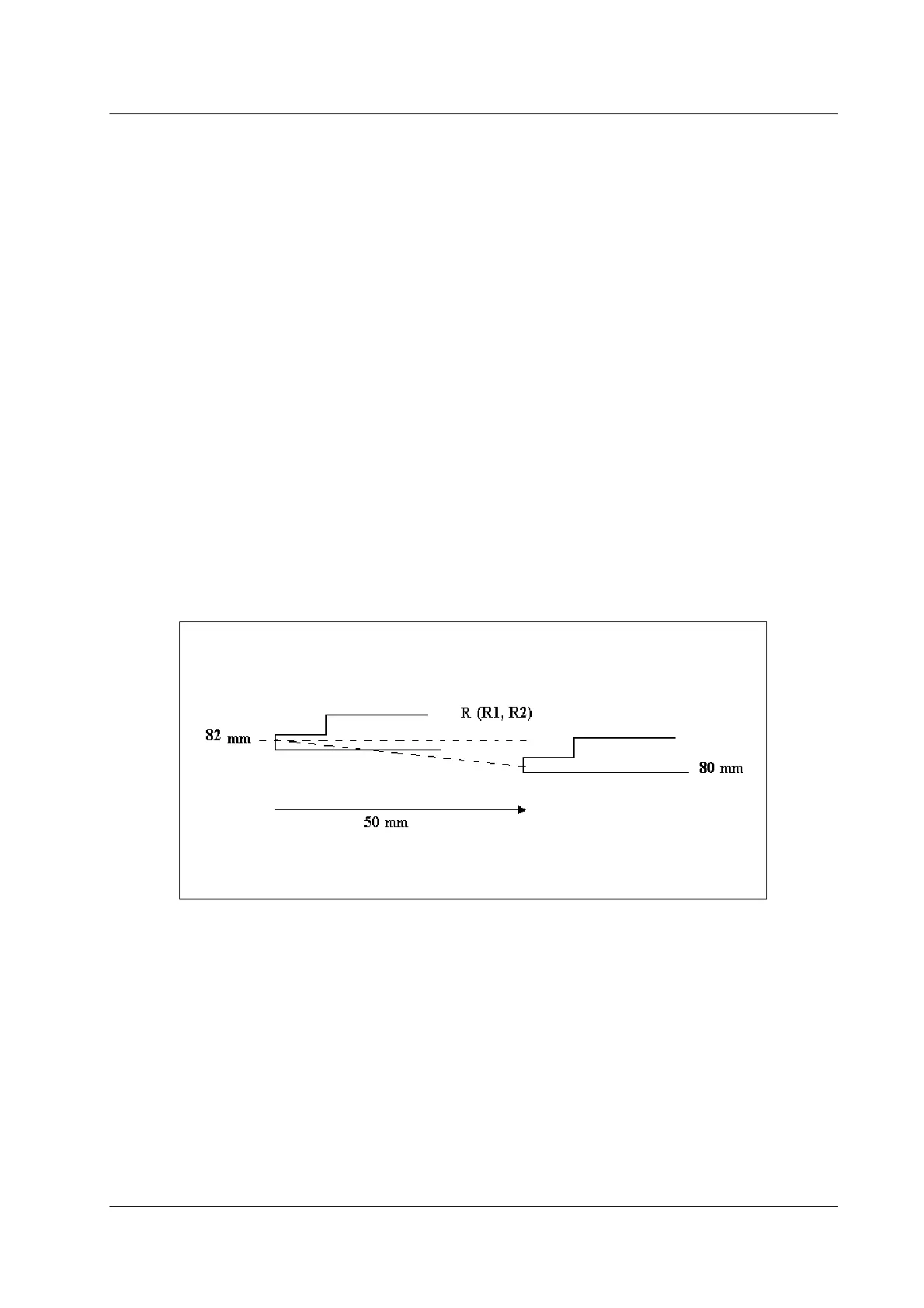

Figure 5.2.c
