Delem
V1101, 5.23
Parameter 25: Correction (Z)
Range : -9.999 - +9.999
Default : 0.000
Units : mm / 100mm
Remark : In case of a X1-axis and a X2-axis
Function
To compensate for mechanical deviations during Z1Z2-axis movements.
Description
When the Z1Z2-axis moves to another position it is possible that the X1- and X2-axis position
changes. You can use this parameter to program a position correction.

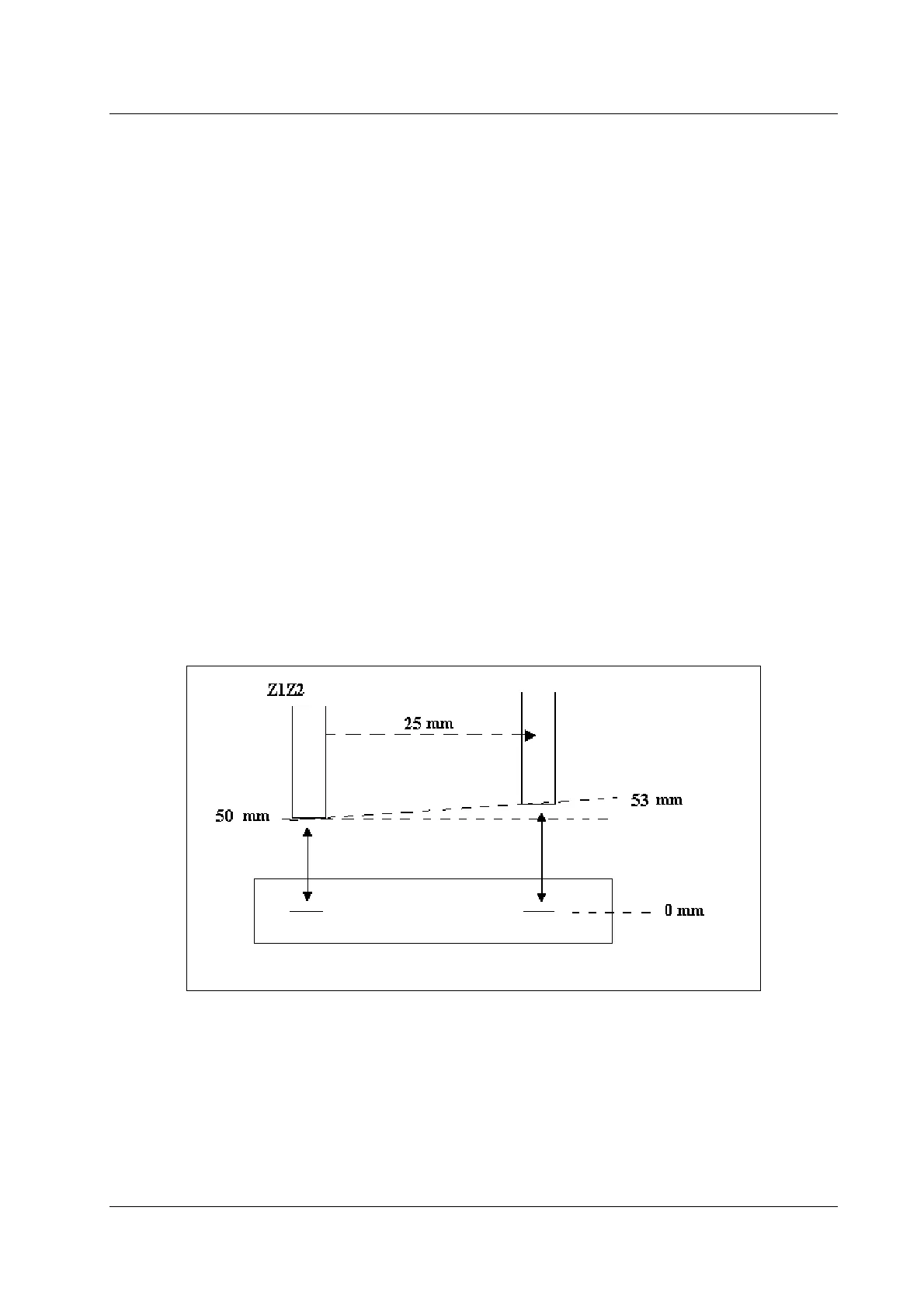

See figure 4.2l how to program the parameter. Notice the sign of the parameter value!
Correction (Z) = measured value - programmed value
Example
= 53 mm - 50 mm = 3 mm / 25 mm
= 12 mm / 100 mm
Figure 5.2.e
