Delem
V1101, 5.26
Parameter 26: Correction (R)
Range : -9.999 - +9.999
Default : 0.000
Units : mm / 100mm
Remark : In case of Z1-axis, Z2-axis
Function
To compensate for mechanical deviations during R-axis movements.
Description
When the R-axis moves to another position it is possible that the Z1 (Z2)-axis position changes.
You can use this parameter to program a position correction.
See figure 4.2o how to program the parameter. Notice the sign of the parameter value!
Correction (R) = measured value - programmed value
Example
= 105 mm - 103 mm = 2 mm / 50 mm
= 4 mm / 100 mm

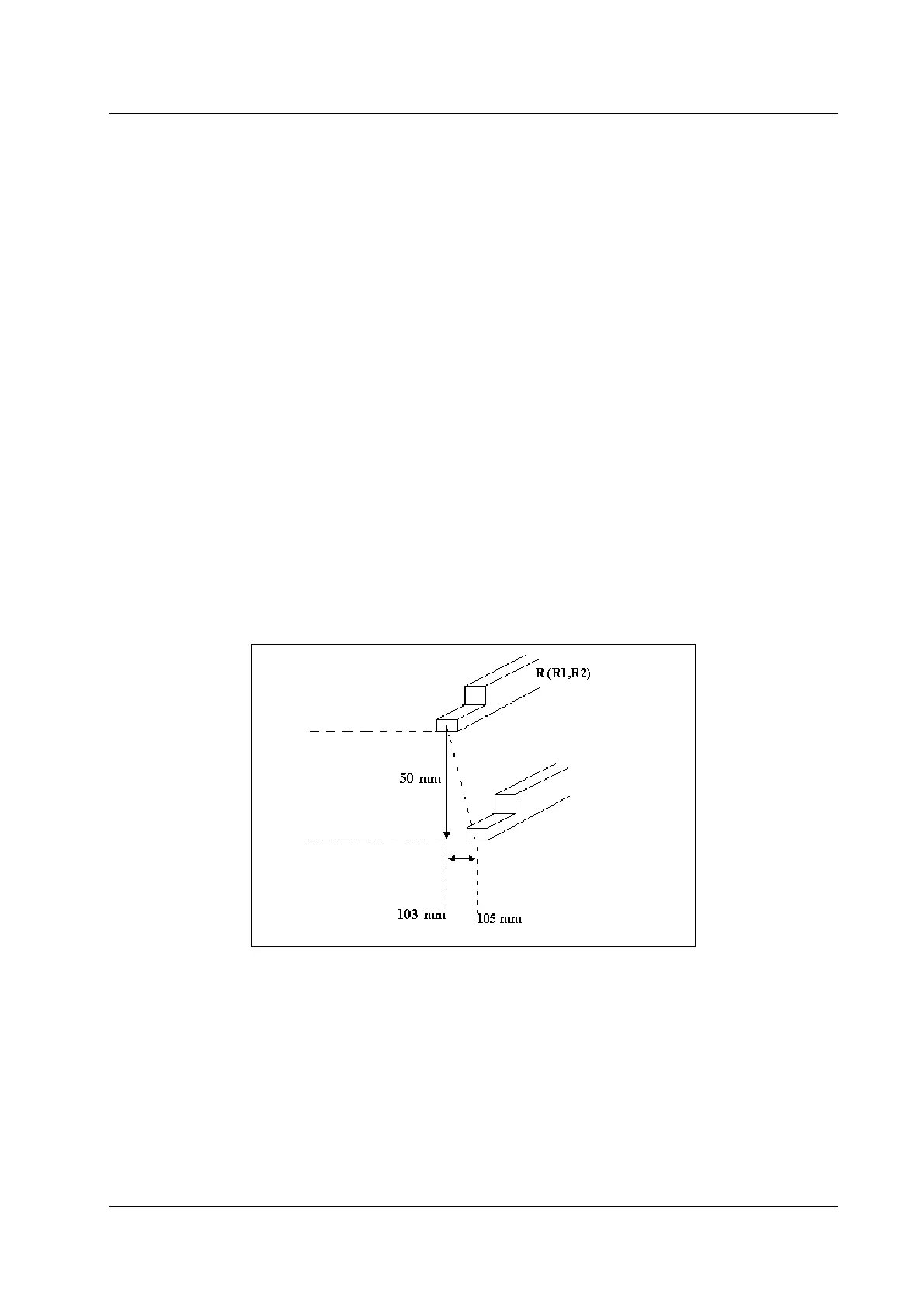

Fig. 5.2.h
