Delem
V0802, 6.11
Parameter 22: DA-out linear/table (0/1)
Range : 0 - 1
Default : 0
Units : -
Function
Linear or non-linear output scaling of the crowning device.
Description
The output scaling of the crowning device can be based on a linear relation between the output
signal and the position of the crowning device (minimum + maximum position).
It is also possible to drive a non-linear crowning device.
0 = linear
1 = table (non- linear)
Press the key to select the required setting.
When you have selected the non-linear crowning device you can program the output scaling via
a table. The values of DA-min and DA-max are ignored in this case. Go to the table with the
‘next page’ softkey.
The table has 10 entries. For each position the output value (in DA-points) can be programmed.
At least 2 entries should be programmed. The actual output value will be computed by means of
linear interpolation. In case of two entries you should program the first and second entry.

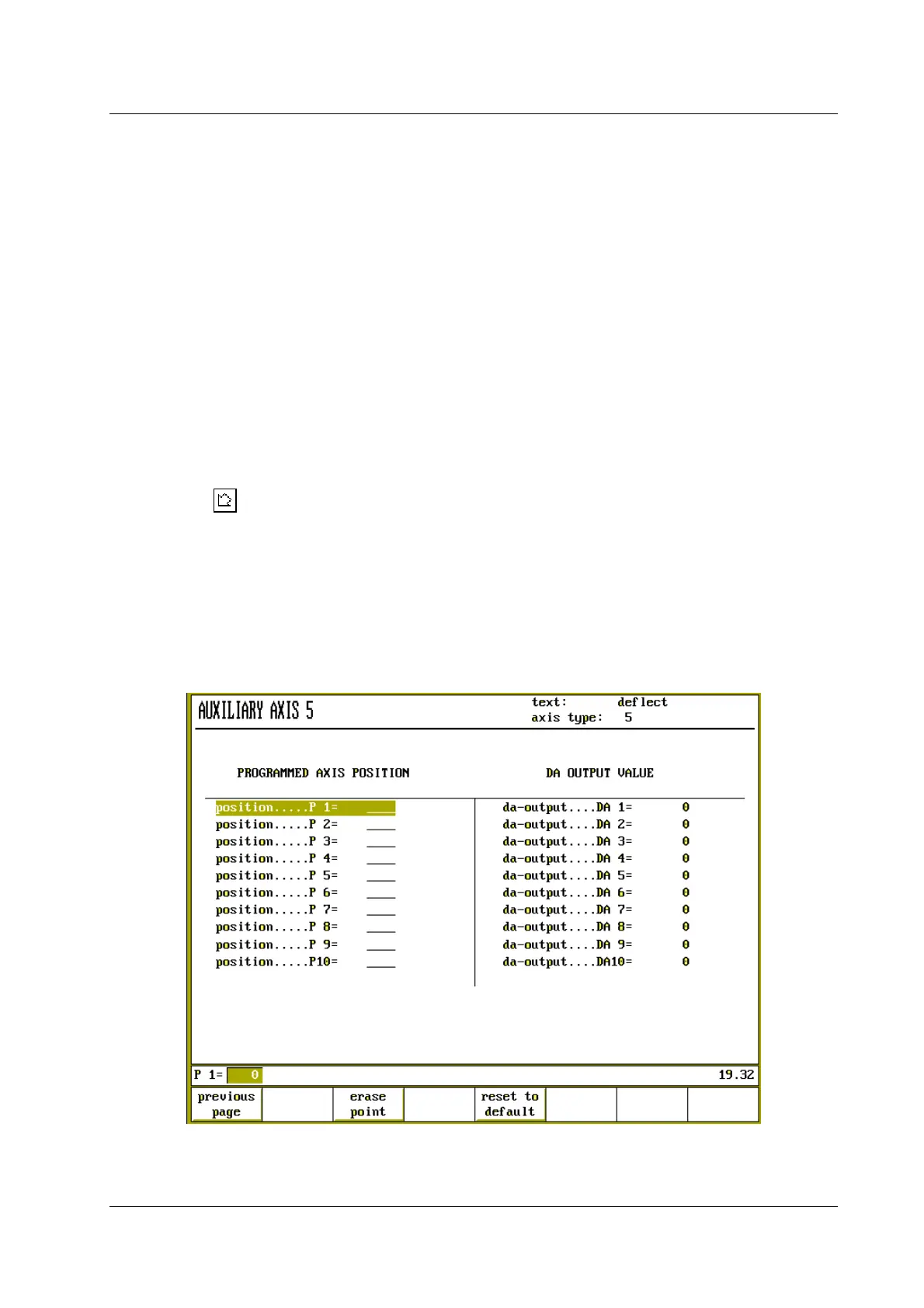

Figure 6.4.b
To Next Page
