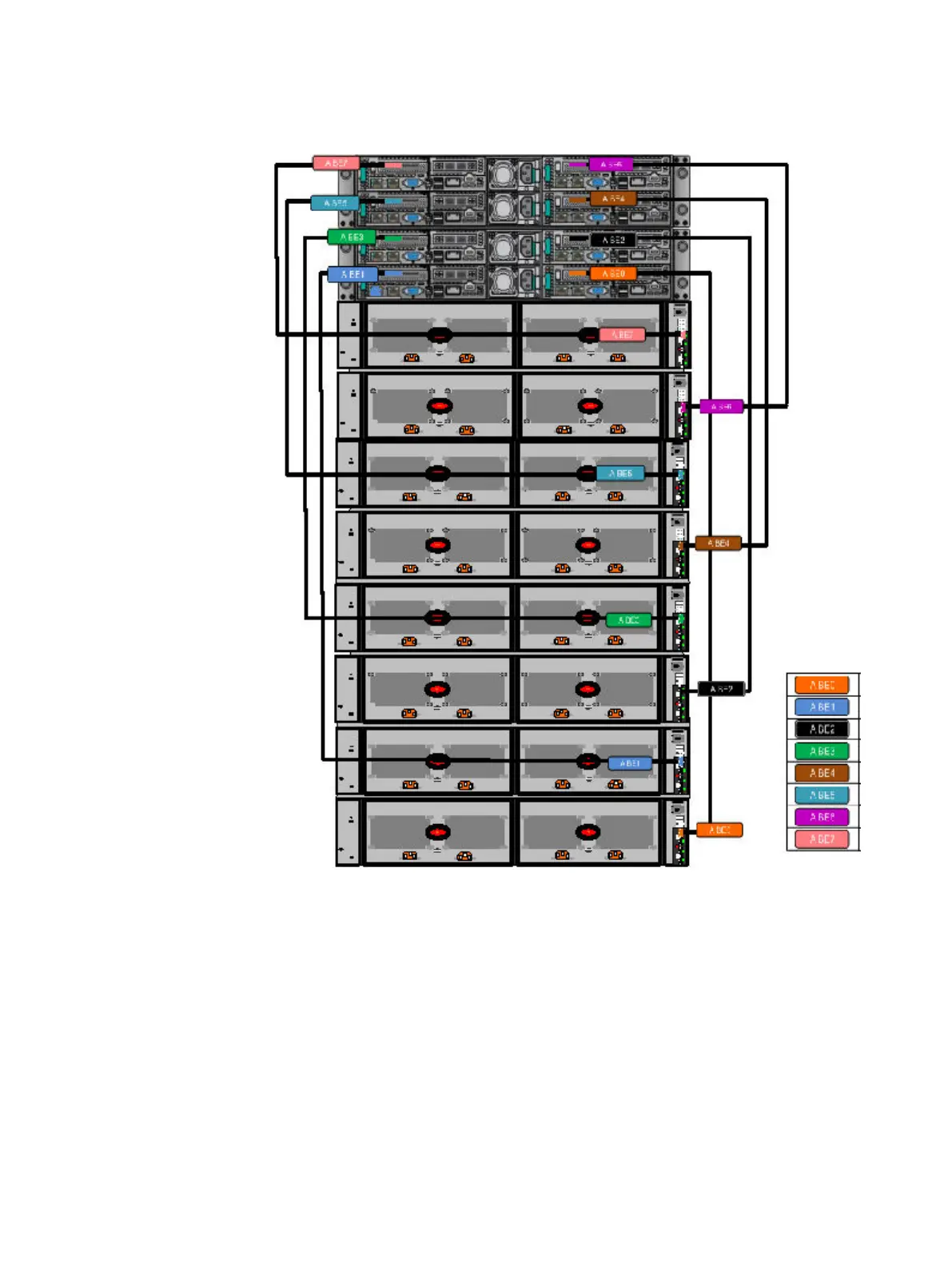

Figure 54 U-Series (Gen1) SAS cabling for eight-node configurations
D-Series SAS cabling
Provides wiring diagrams for the SAS cables that connect nodes to Pikes Peak DAEs.
D-Series has one High Density SAS cable (two cables put together); One connector
on the HBA and one connector on the I/O Module.
The top port on the DAE is port 0 and always connects to the SAS adapter's left port
on the node. The bottom port is port 1 and always connects to the SAS adapter's right
port on the node.
SAS Cabling
D-Series SAS cabling 93
