Dell 1610HD - Adjusting the Projected Image

20 Using Your Projector
3 To power off the projector quickly, press the Power button and hold for 1 second
while the projector’s cooling fans are still running.
NOTE: Before you turn on the projector again, wait for 60 seconds to allow the
internal temperature to stabilize.
4 Disconnect the power cord from the electrical outlet and the projector.
Adjusting the Projected Image
Raising the Projector Height
1 Press the Elevator button.
2 Raise the projector to the desired display angle, and then release the button to
lock the elevator foot into position.
3 Use the tilt adjustment wheel to fine-tune the display angle.
Lowering the Projector Height
1 Press the Elevator button.
2 Lower the projector, and then release the button to lock the elevator foot into
position.

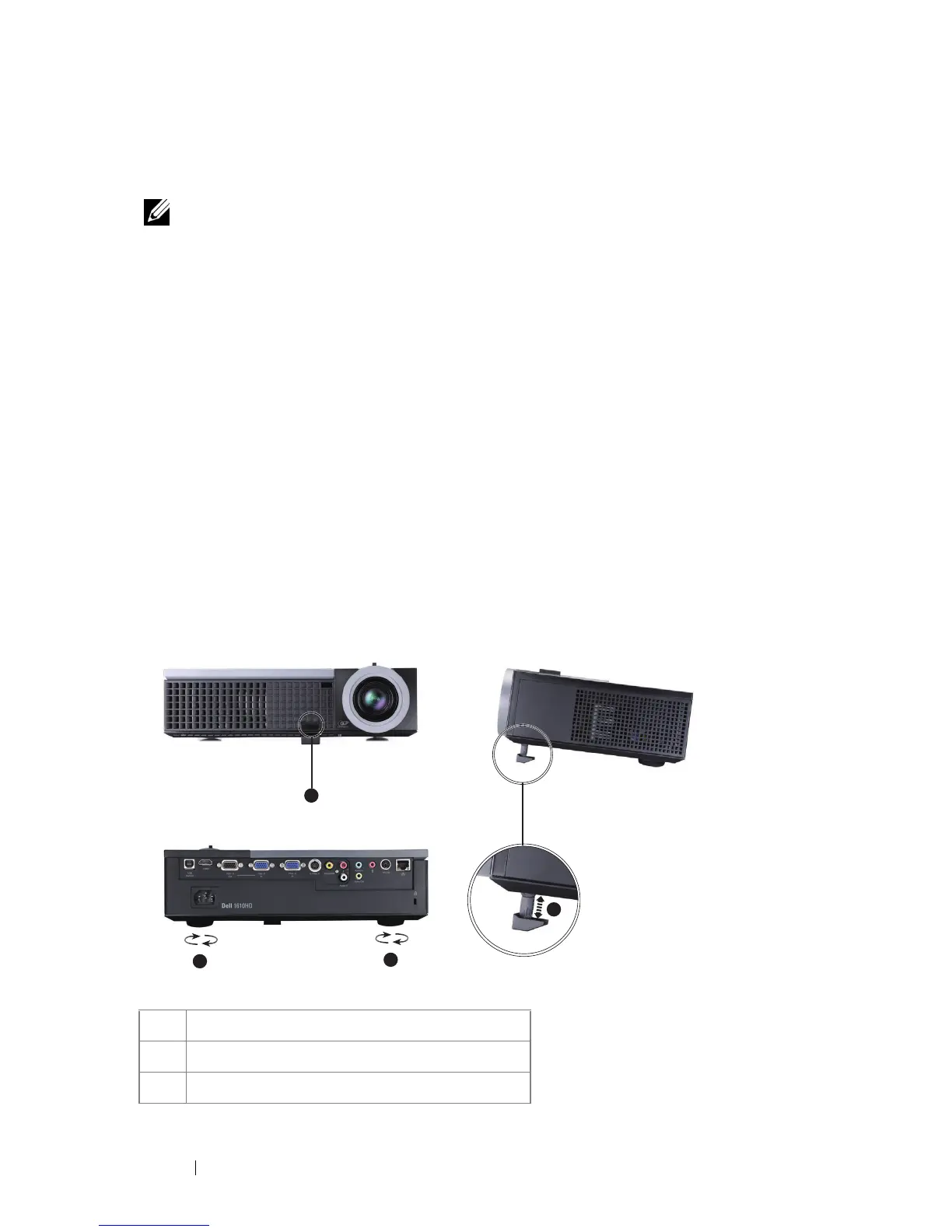

1 Elevator button
2 Elevator foot (Angle of tilt: 0 to 8 degree)
3 Tilt adjustment wheel
2
3
3
1
