About Your Dell Projector 5

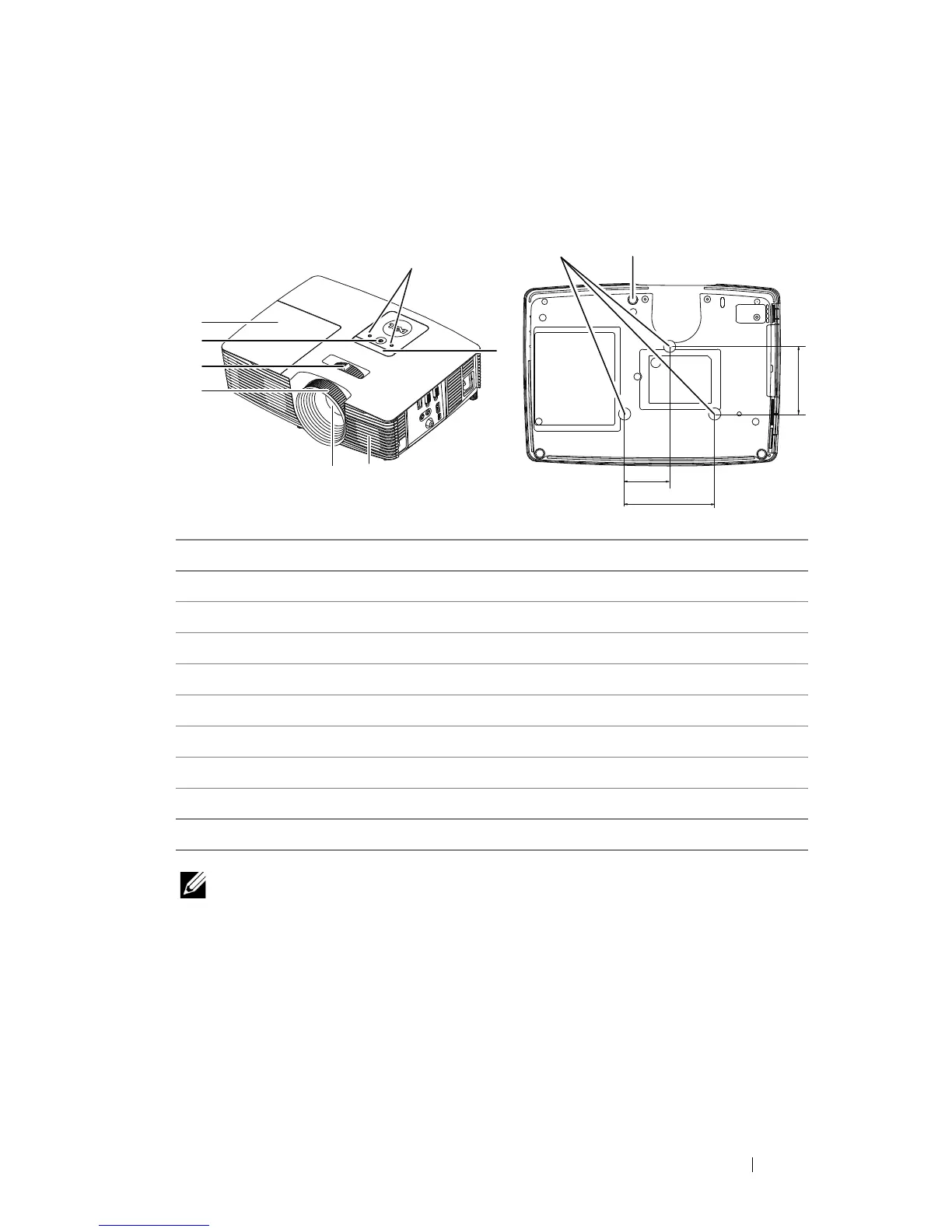

Projector Top and Bottom View
NOTE: Ceiling mount screw hole M3 x 6.5 mm depth.
Recommended torque < 15 kgf-cm.
1 Status indicators
2IR receivers
310W Speaker
4 Lens
5Focus ring
6 Zoom tab
7 Power button
8 Lamp cover
9 Mounting holes for ceiling mount
10 Tilt adjustment wheel
2
1
5
8
7
6
43
9
10
82.30
110.00
55.00
Top View Bottom View
