8. Mechanical Instruction
Tools: 2 Power screwdrivers (φ=5mm,L=60mm); 1 small cross screwdriver; turnbuckle driver;
Setting: Power screwdriver torque A=11 kgF. Cm; torque B=6 kgF. Cm
Note: Firstly, put the monitor on a soft, flat and clean surface, wear gloves.
Fig Remark

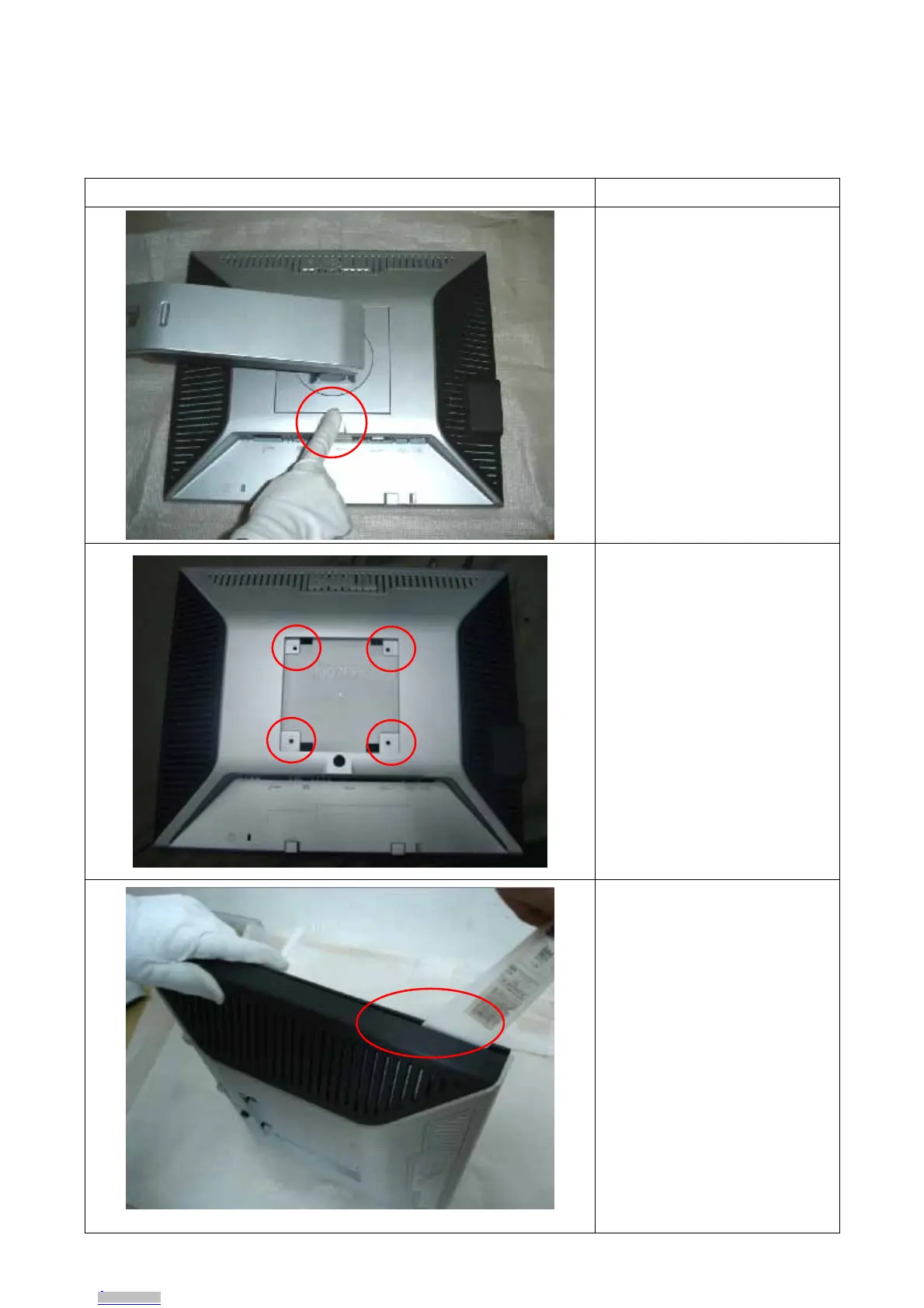

Remove stand :
1. Rotate the stand to allow
access to the stand release
button.
2. Press the Stand release button
and lift up the Stand and away
from the monitor.
1. Remove the 4 screws by
torque A
2. Pry the monitor up then find
out the hooks’ position, use the
tool (like the picture or other
card) to insert into the gap of
bezel and rear cover.
