Dell 1907FPc - Page 49

Dell 1907FPc
49

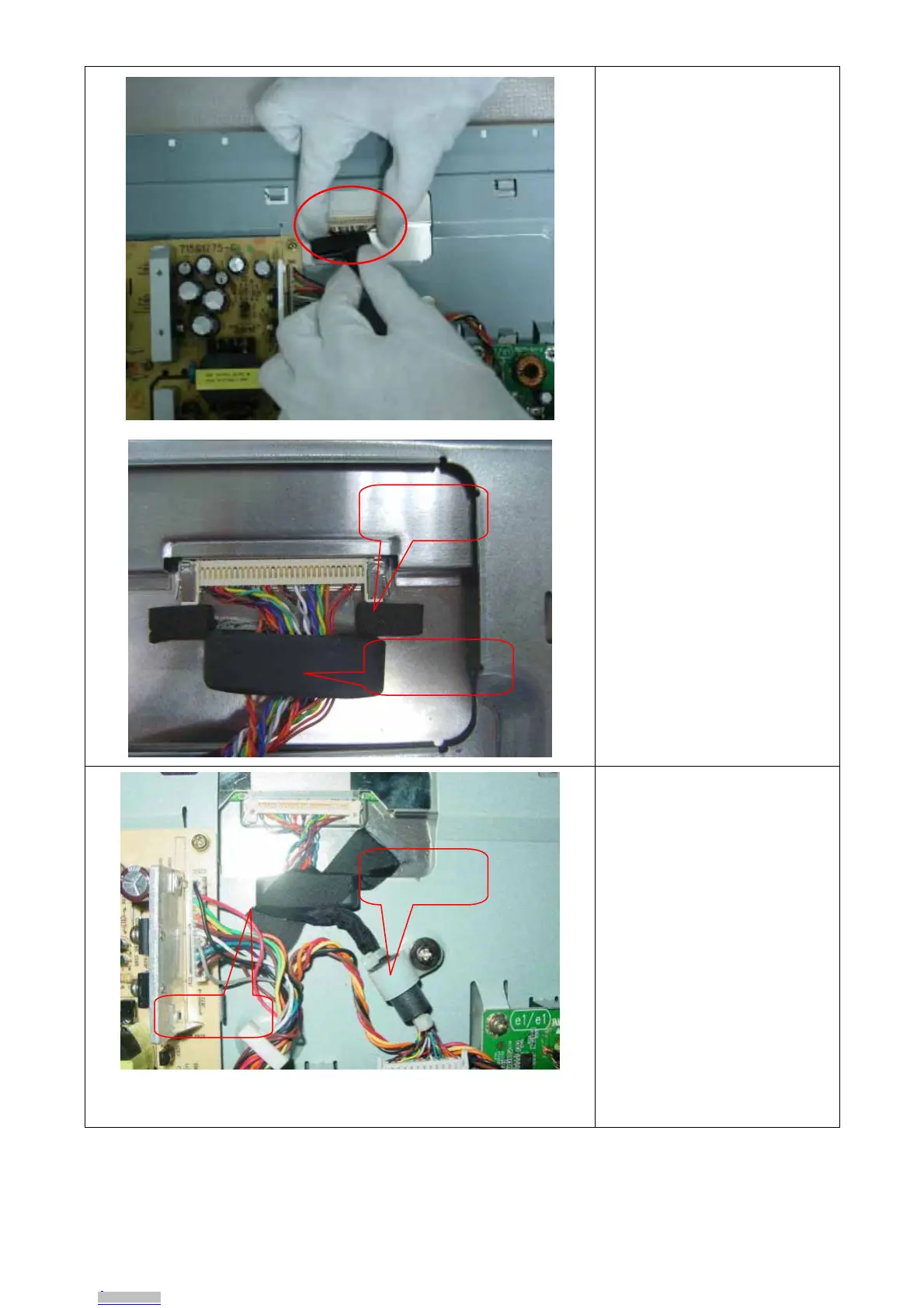

3. Disconnect the wire harness
between main board and panel
Note: Make LVDS connector’s
metal side adown for
SAMSUNG panel and
upturned for other panel.
Install:
Fix the LVDS cable by black tape
and cable hook
Cable hook
Black tape
EVA washers
Magnetism ring
