DISASSEMBLY
- 8 -

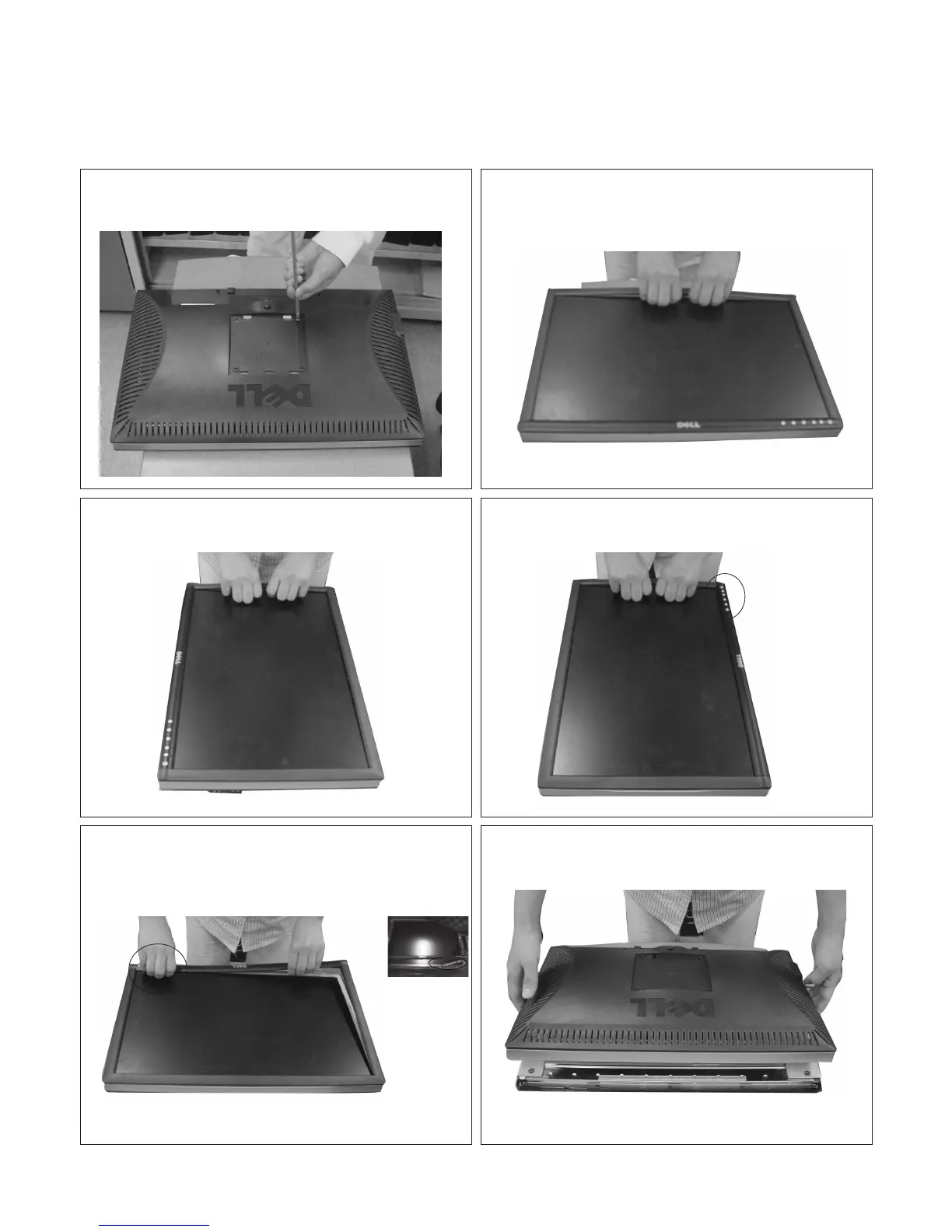

REAR CABINET REMOVEL.
2) Please lift central inside edge of Cabinet upward with
fingertip then latch will be departed.
(This time take care so that do not give damage on
the module surface.)
3) Progress to left and lifts cabinet furtively and extracts
latch.
4) Progress to right and extracts cabinet side latch by
same method.
5) Progress to bottom.
Warning : if you lift cabinet up, power connector lead
may be disconnected or damaged.)
Refer to the small picture.
6) Turn upside down then lift the back cover ass'y up.
1) Remove the screws.
To Next Page
