30 | Setting Up the Monitor

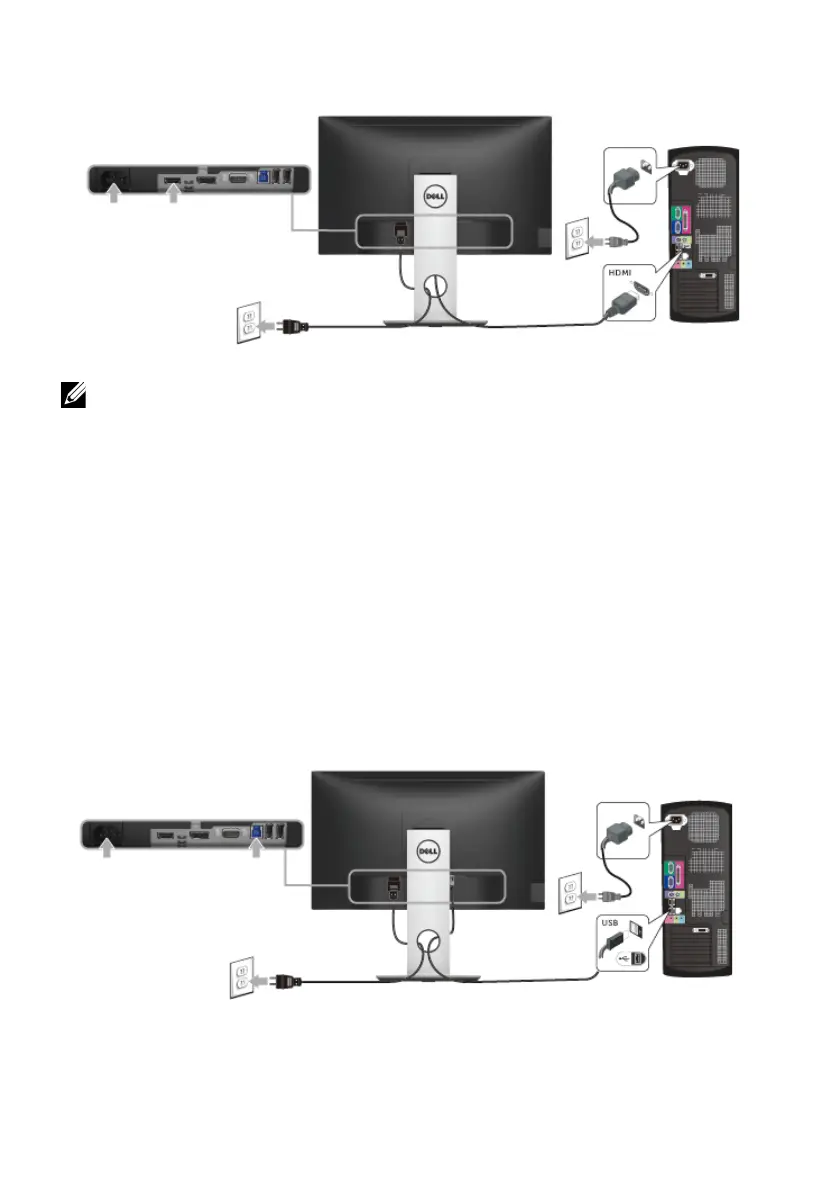

Connecting the HDMI cable (optional)
NOTE: The graphics are used for the purpose of illustration only. Appearance of the
computer may vary.
Connecting the USB 3.0 cable
After you have completed connecting the VGA/DP/HDMI cable, follow the procedures
below to connect the USB 3.0 cable to the computer and complete your monitor setup:
1 Connect the upstream USB 3.0 port (cable supplied) to an appropriate USB 3.0 port
on your computer. (See
Bottom View
for details.)
2 Connect the USB 3.0 peripherals to the downstream USB 3.0 ports on the monitor.
3 Plu
g the power cables for your computer and monitor into a nearby outlet.
4 T
urn On the monitor and the computer.
If your monitor displays an image, installation is
complete. If it does not display an
image, see
Universal Serial Bus (USB) Specific Problems
.
5 Use the ca
ble slot on the monitor stand to organize the cables.
