Installation: Dell 2300MP Projector
file:///C|/Venkat%20Shared/Projectors/2300MP/EN/install.htm[11/30/2012 2:18:55 PM]
1 Zoom tab
2 Focus ring

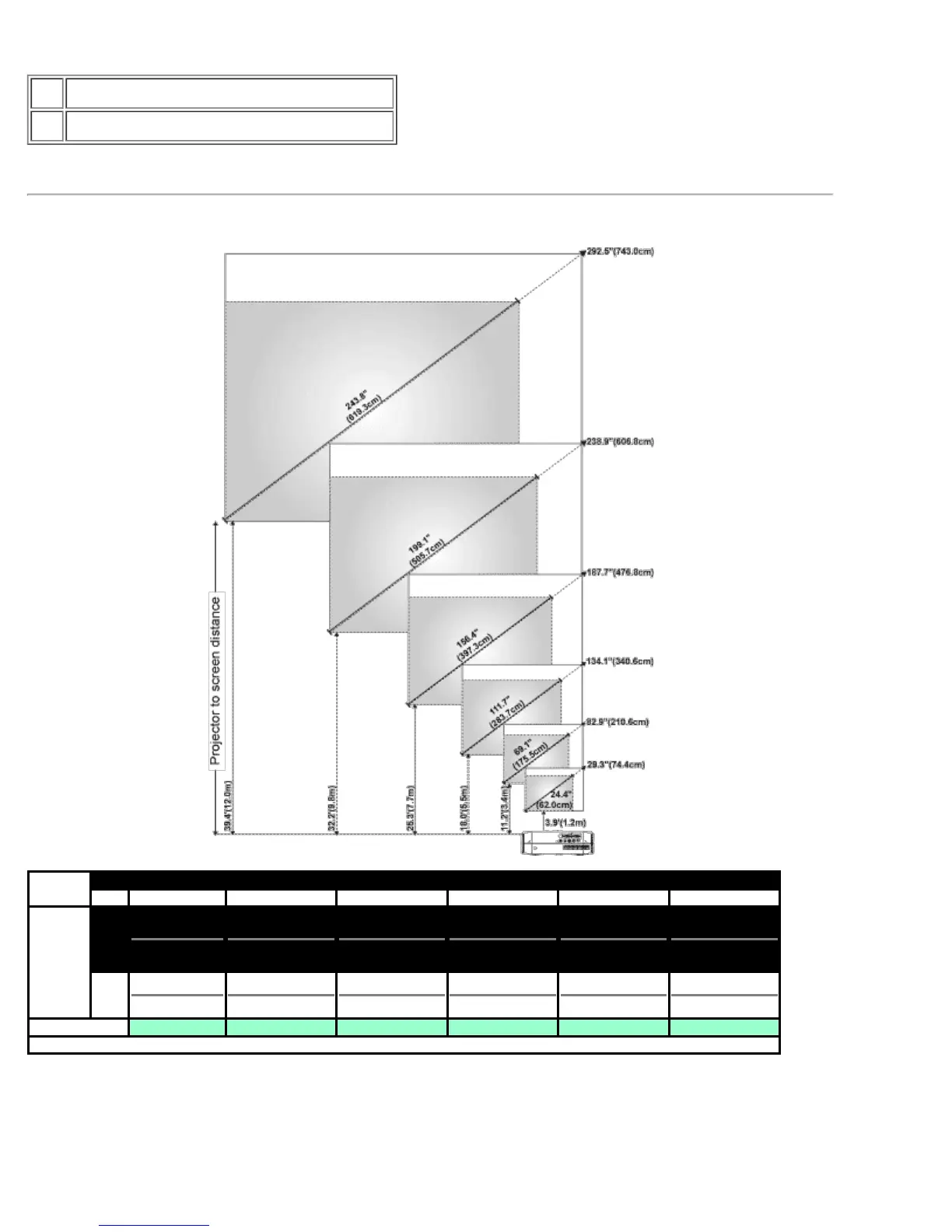

Adjusting Projection Image Size
Screen
(Diagonal)
Max. 29.3" (74.4cm) 82.9" (210.6cm) 134.1" (340.6cm) 187.7" (476.8cm) 238.9" (606.8cm) 292.5" (743.0cm)
Min. 24.4" (62.0cm) 69.1" (175.5cm) 111.7" (283.7cm) 156.4" (397.3cm) 199.1" (505.7cm) 243.8" (619.3cm)
Screen
Size
Max.
(WxH)
23.4"X17.6"
(59.4cmX44.7cm)
66.3"X49.7"
(168.4cmX126.2cm)
107.3"X80.4"
(272.5cmX204.2cm)
150.2"X112.6"
(381.5cmX286.0cm)
191.1"X143.3"
(485.4cmX364.0cm)
234.0"X175.5"
(594.4cmX445.8cm)
Min.
(WxH)
19.5"X14.6"
(49.5cmX37.1cm)
55.3"X41.4"
(140.5cmX105.2cm)
89.4"X67.0"
(227.1cmX170.2cm)
125.1"X93.9"
(317.8cmX238.5cm)
159.3"X119.5"
(404.6cmX303.5cm)
195.0"X146.3"
(495.3cmX371.6cm)
Distance 3.9'(1.2m) 11.2'(3.4m) 18.0'(5.5m) 25.3'(7.7m) 32.2'(9.8m) 39.4'(12.0m)
* This graph is for user reference only.
