Dell 4100MP - Page 4




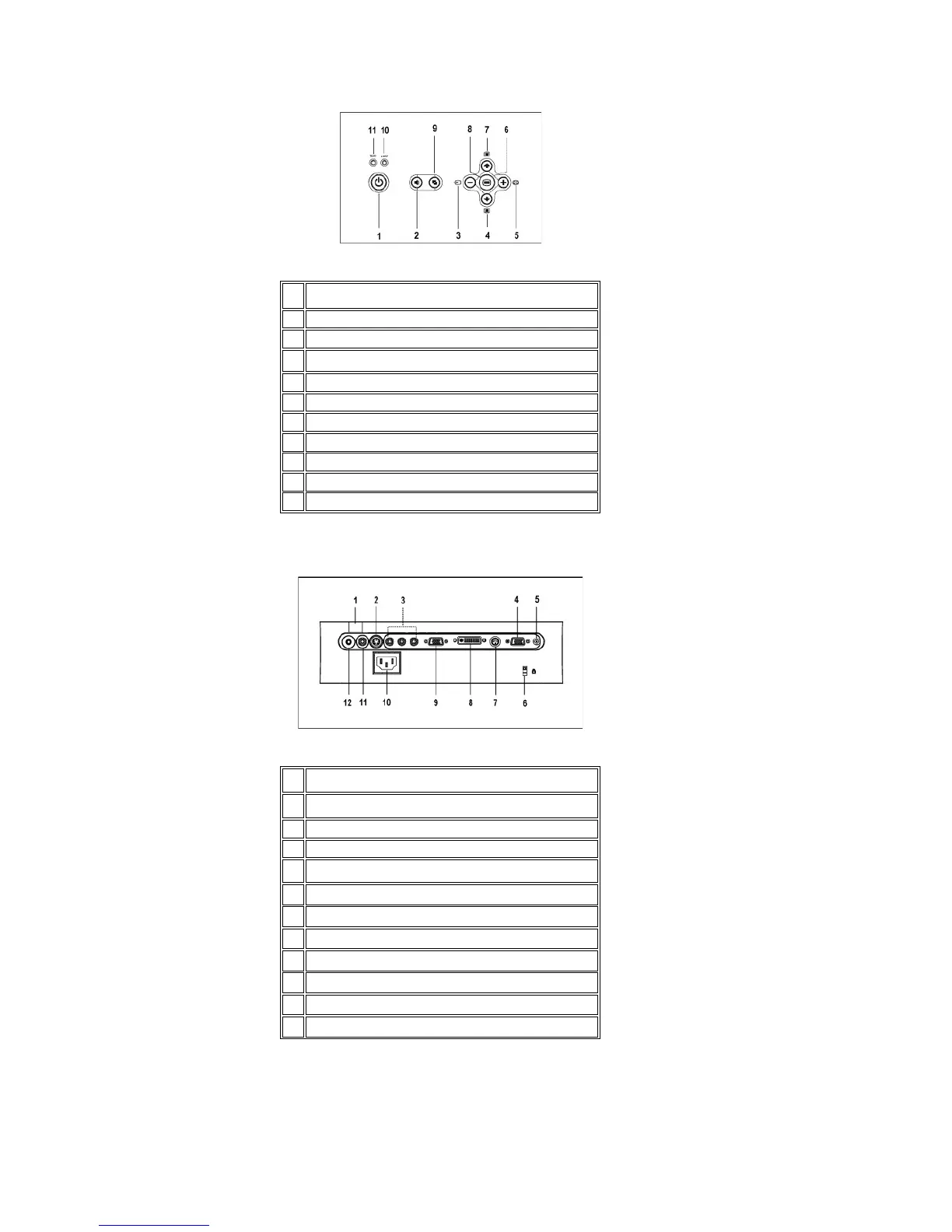

Connection Ports



1
Power button
2
Volume key
3
Source
4
Keystone adjustment
5
Auto Adjust (Re-sync)
6
Four directional keys
7
Keystone adjustment
8
Menu
9
Video Mode button
10
Lamp warning light
11
Temperature warning light
1
IR receiver
2
S-video connector
3
Component RCA input connector
4
VGA Out (monitor loop-through)
5
12 Volt DC relay output
6
Kensington lock hole
7
RS232 connector
8
M1-DA connector
9
VGA In (D-sub) connector
10
Power cord connector
11
Video input connector
12
Audio input connector
Remote Control
