PIP Image--
Note 1: PIP Image will be enabled only when both types of signals below are connected to the projector,
Type 1): S-Video, Composite Video, Component-i.
Type2): Component-p, HDTV, PC signals.
Note 2: When swapping the foreground and background displays, the smallest screen size of foreground display will vary depending on
different combinations of signal sources for PIP.

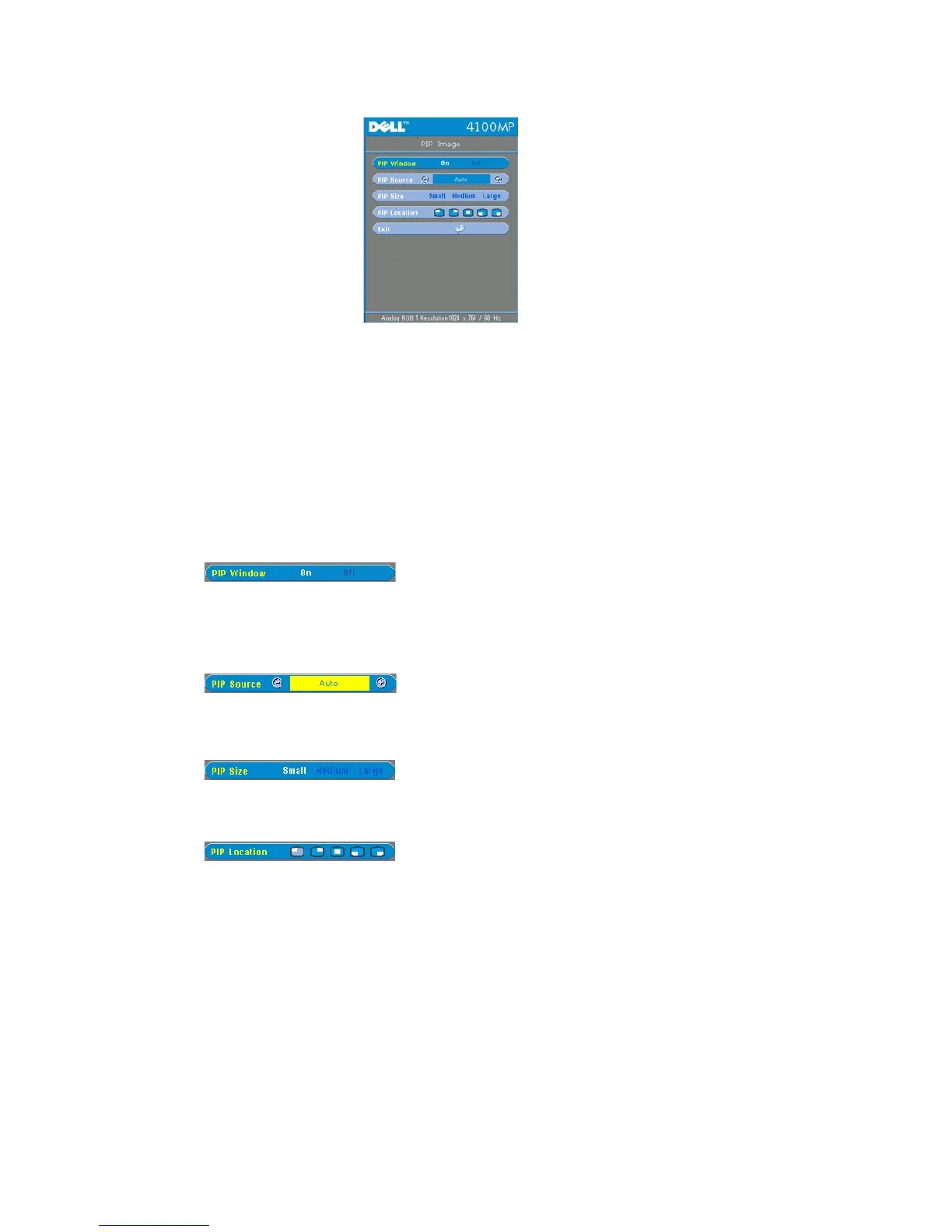

PIP Image

PIP Window
l Select On to enable the picture-in-picture display function.
l Select Off to disable the picture-in-picture display function.

PIP Source
Use PIP Source to step through the display source one by one for the foreground display.

PIP Size
Adjust the image size of the foreground display.

PIP Location
Adjust the image location of the PIP display.
Card Reader Module Menu
