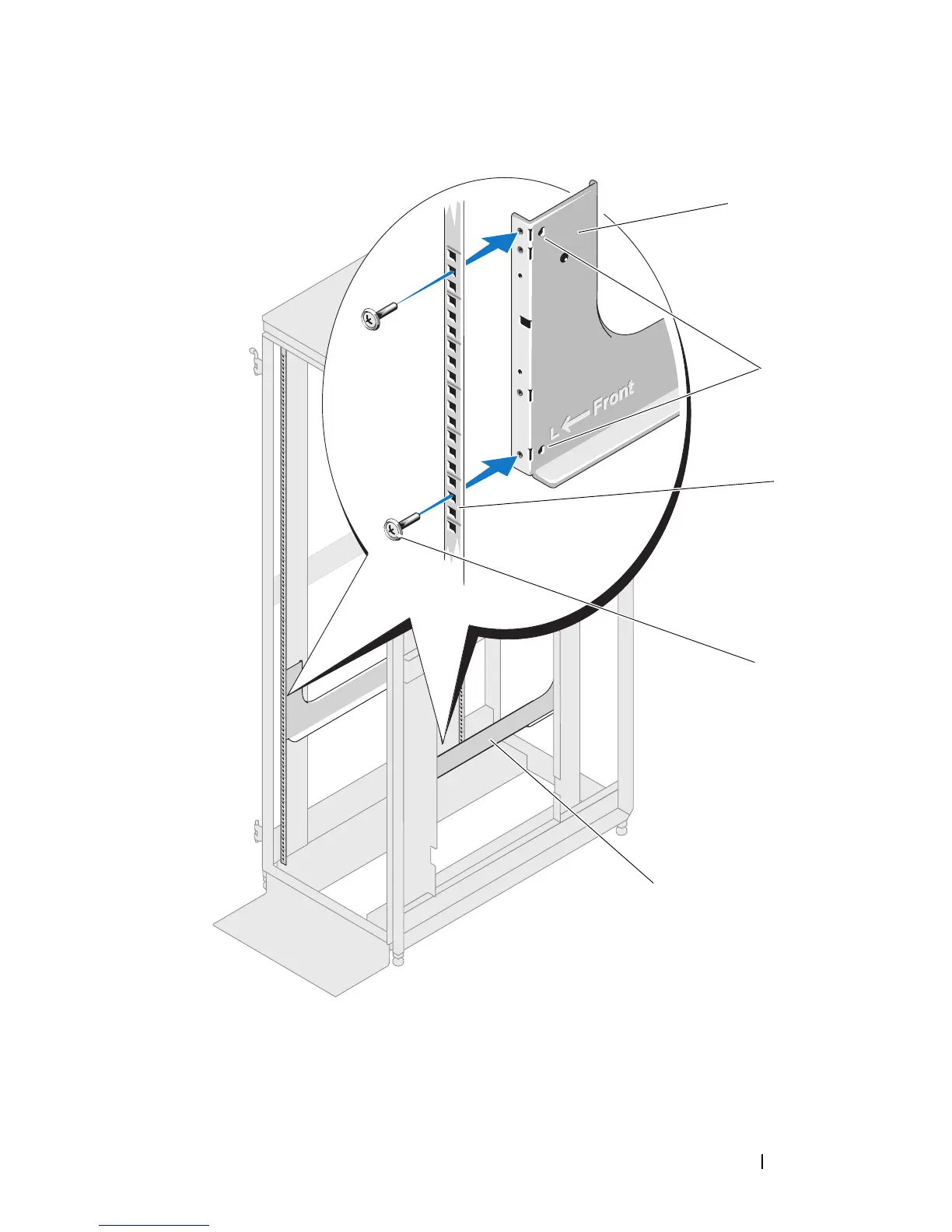

Figure 1-6. Installing the VersaRails Rail Assemblies
1 rail-assembly mounting-
bracket flange
2 tooled arrow cutouts (2) 3 vertical rails
4 Phillips screws (2) 5 rail assemblies (2)
1
front of rack
3
4
5
2
