Dell Alienware 17 R4 - Page 14

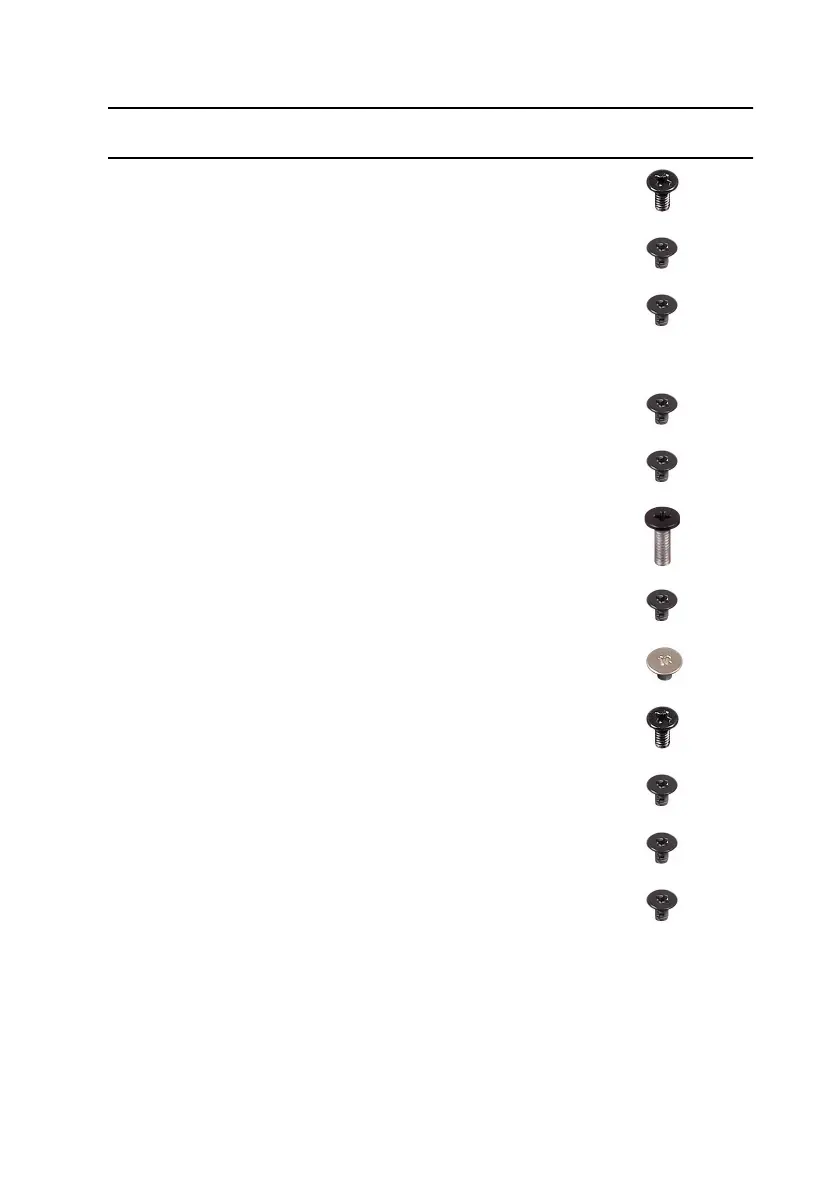

Component Secured to Screw type Quantity Screw
I/O board Palm-rest
assembly
M2.5x5 2
Keyboard
bracket
Palm-rest
assembly
M2x3 17
Logo board Display back-
cover and
antenna
assembly
M2x3 2
Power-adapter
port bracket
Palm-rest
assembly
M2x3 1
Power-button
board
Palm-rest
assembly
M2x3 2
Rear-I/O cover Computer base M2.5x7 2
Solid-state
drive
Computer base M2x3 1
Subwoofer Palm-rest
assembly
M2x2 2
System-board
assembly
Palm-rest
assembly
M2.5x5 7
Touch-pad
bracket
Palm-rest
assembly
M2x3 5
Tron-light
holder
Computer base M2x3 2
Wireless-card
bracket
Computer base M2x3 1
14
