Dell Alienware 17 R4 - Page 21

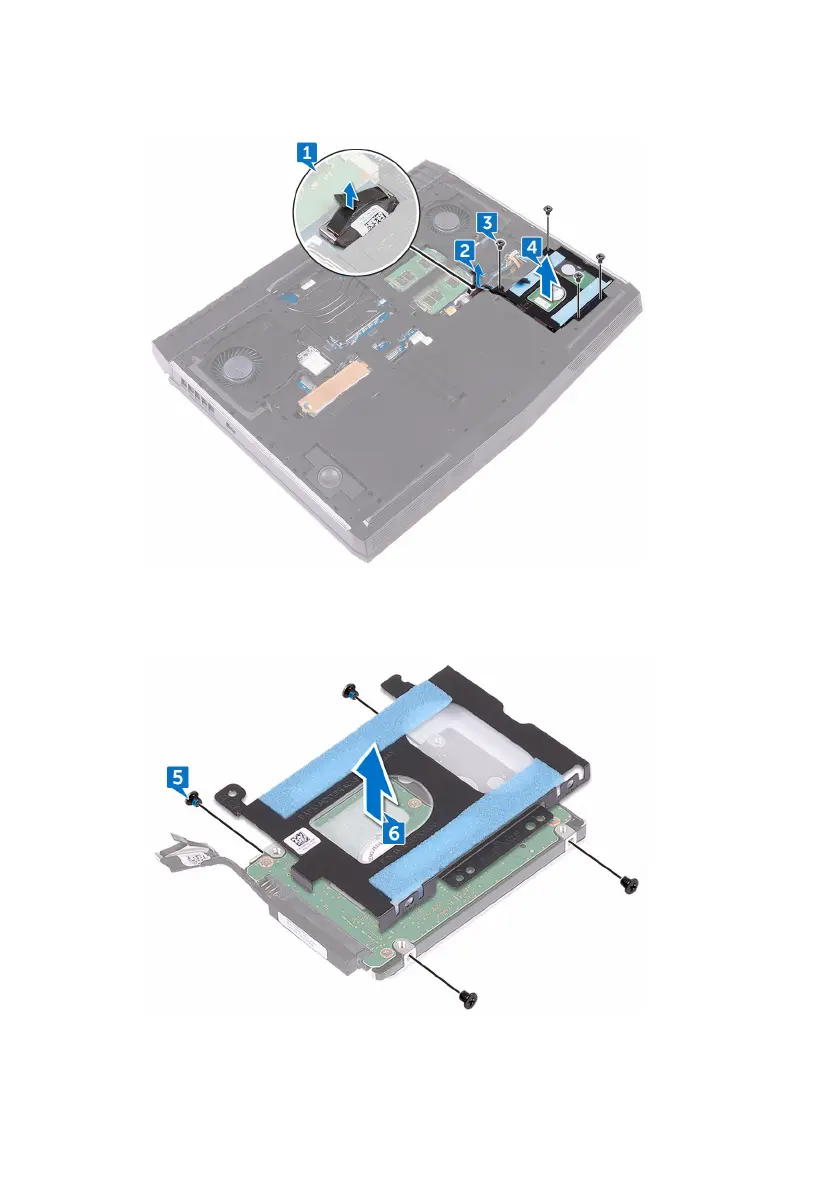

4 Lift the hard-drive assembly along with its cable off the computer base.
5 Remove the four screws (M3x3) that secure the hard-drive bracket to the
hard-drive assembly.
6 Lift the hard-drive bracket off the hard-drive assembly.
21
