Dell C5519Q Service Manual

 5
 5

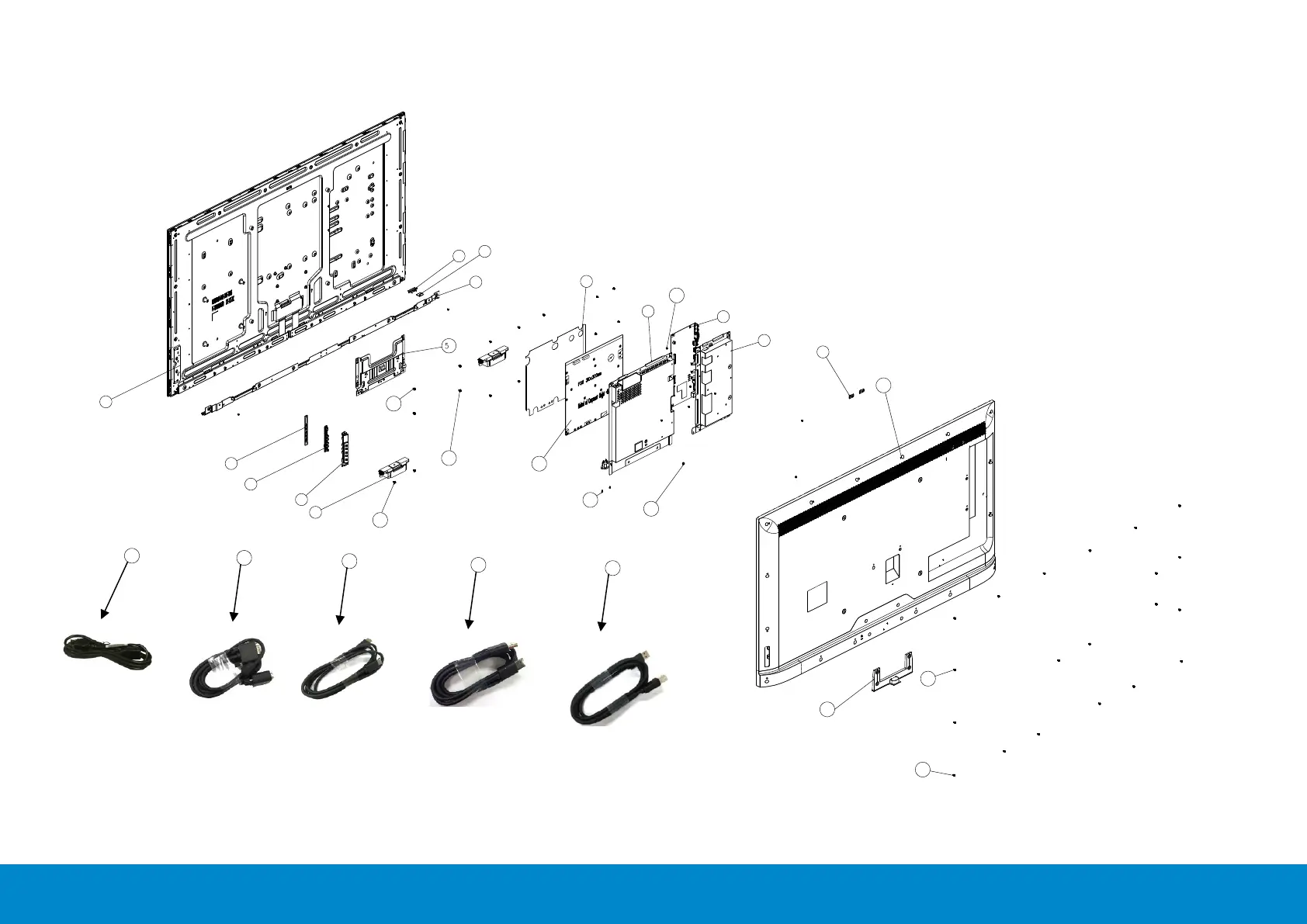

2. Exploded view diagram with list of items
11
S8
S7
S6
S5
S4
S3
S2
S1
9
10
8
7
6
3
2
4
1
12
13
14
15
16
17
18
19
20
21
22

Dell C5519Q Specifications

General

Hardness	3H
LED type	LED light bar system
Color gamut	72 %
Pixel pitch	0.315 x 0.315 mm
Response time	8 ms
Display diagonal	55 \
Display brightness	350 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Native refresh rate	60 Hz
Vertical scan range	23 - 80 Hz
Horizontal scan range	30 - 160 kHz
Supported video modes	480p, 576p, 720p, 1080i, 1080p, 2160p
Contrast ratio (typical)	4000:1
Display number of colors	1.073 billion colors
Display diagonal (metric)	139.7 cm
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1600 x 900, 1920 x 1080 (HD 1080), 3840 x 2160
Certification	CEL, WEEE, ErP, TCO, BFR/PVC free
AC input voltage	100 - 240 V
Heat dissipation	307.8 BTU/h
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (max)	200 W
Power consumption (off)	0.3 W
Power consumption (standby)	0.4 W
Power consumption (typical)	100 W
Operating altitude	0 - 5000 m
Non-operating altitude	5000 - 12192 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %
Package weight	27570 g
USB version	3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN	Yes
Audio (L/R) in	2
USB connector type	USB Type-A
USB ports quantity	4
DVI-I ports quantity	0
Ethernet LAN (RJ-45) ports	1
Cables included	AC, DisplayPort, HDMI, USB, VGA
Orientation	Vertical
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	15.7 mm
Placement supported	Indoor
Bezel width (bottom)	25.55 mm
Panel mounting interface	400 x 400 mm
RMS rated power	20 W
Purpose	Corporate
Sustainability certificates	RoHS, ENERGY STAR
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	64.8 mm
Width	1241 mm
Height	721.5 mm
Weight	20500 g
