About this task

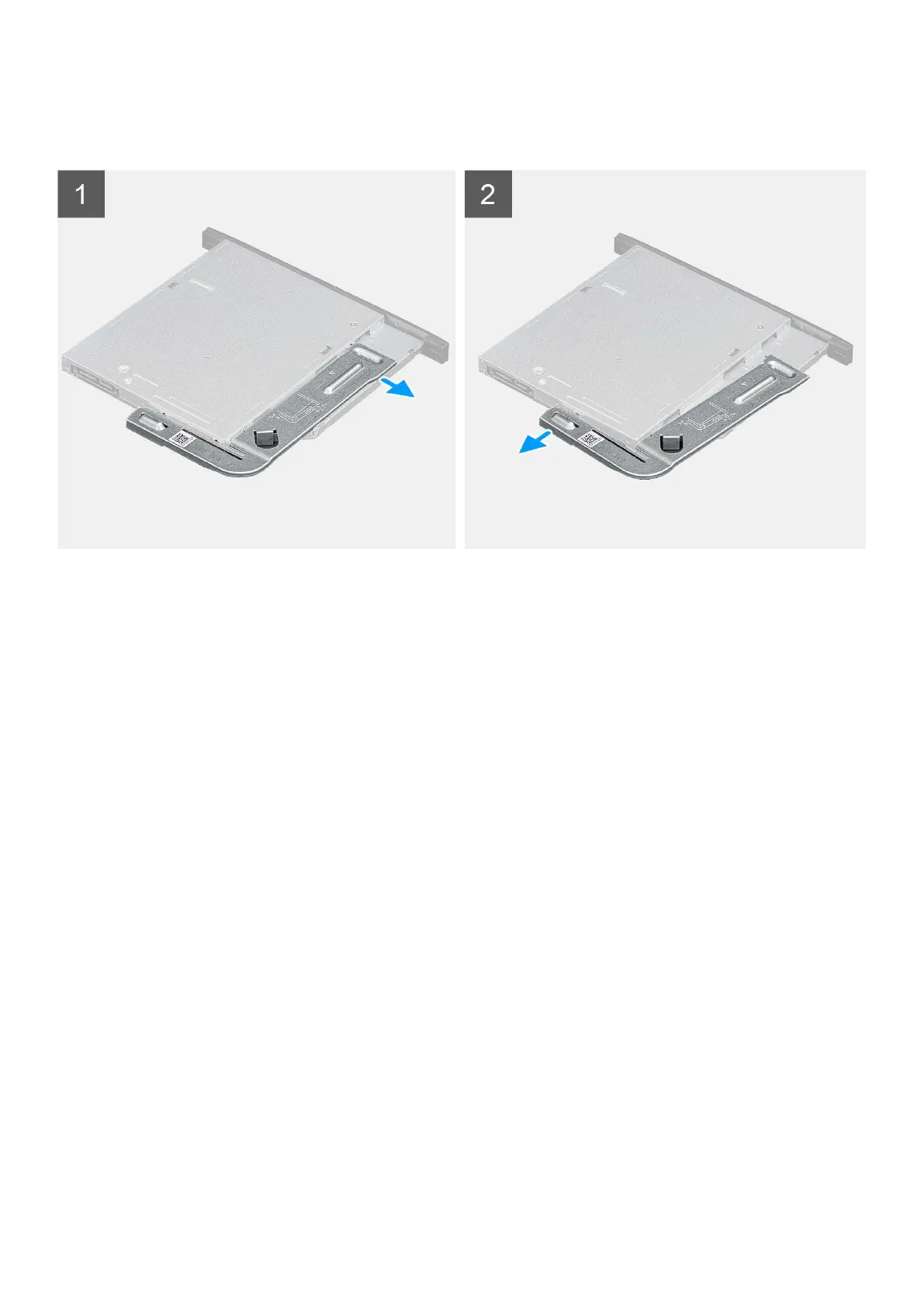

The following images indicate the location of the slim-ODD bracket and provide a visual representation of the removal
procedure.
Steps
1. Pry the slim-ODD bracket to release it from the slot on the ODD.
2. Remove the slim-ODD bracket off the ODD.
Installing the slim-ODD bracket
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the slim-ODD bracket and provide a visual representation of the installation
procedure.
Removing and installing components
49
