Installing the Front Panel
1. Insert the hooks along the bottom edge of the front panel into the slots on the chassis front.
2. Push the panel towards the computer chassis to engage the front-panel retention clips, until they click into place.
3. Install the cover.
4. Follow the procedures in
After Working Inside Your Computer
.
Removing the Expansion Card
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove the cover.

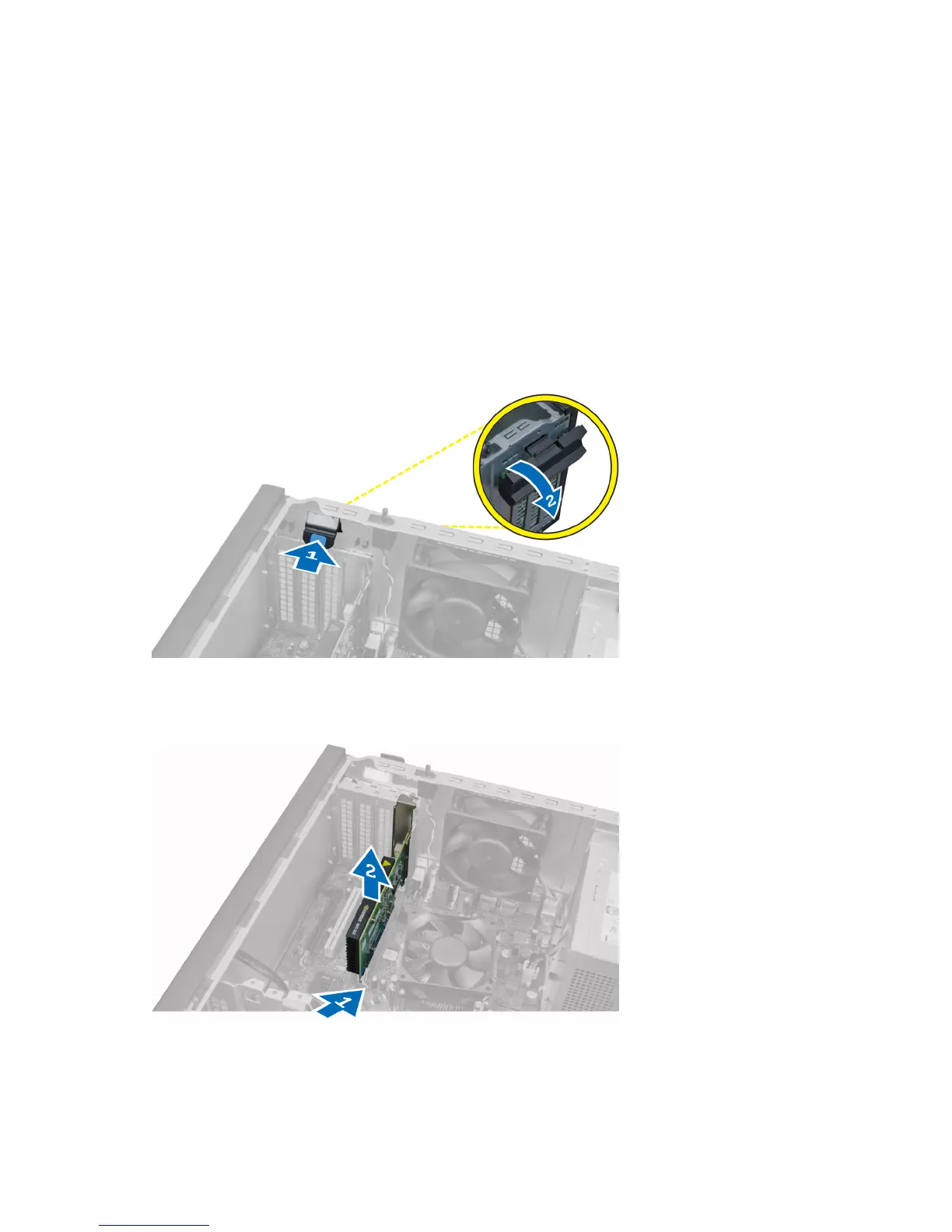

3. Press the card-retention latch and pull the latch outwards on the other side.
Figure 6.
4. Release the retention-clip away from the expansion card. Then, ease the card up and out of its slot and remove it
from the computer.
Figure 7.
10
