Steps

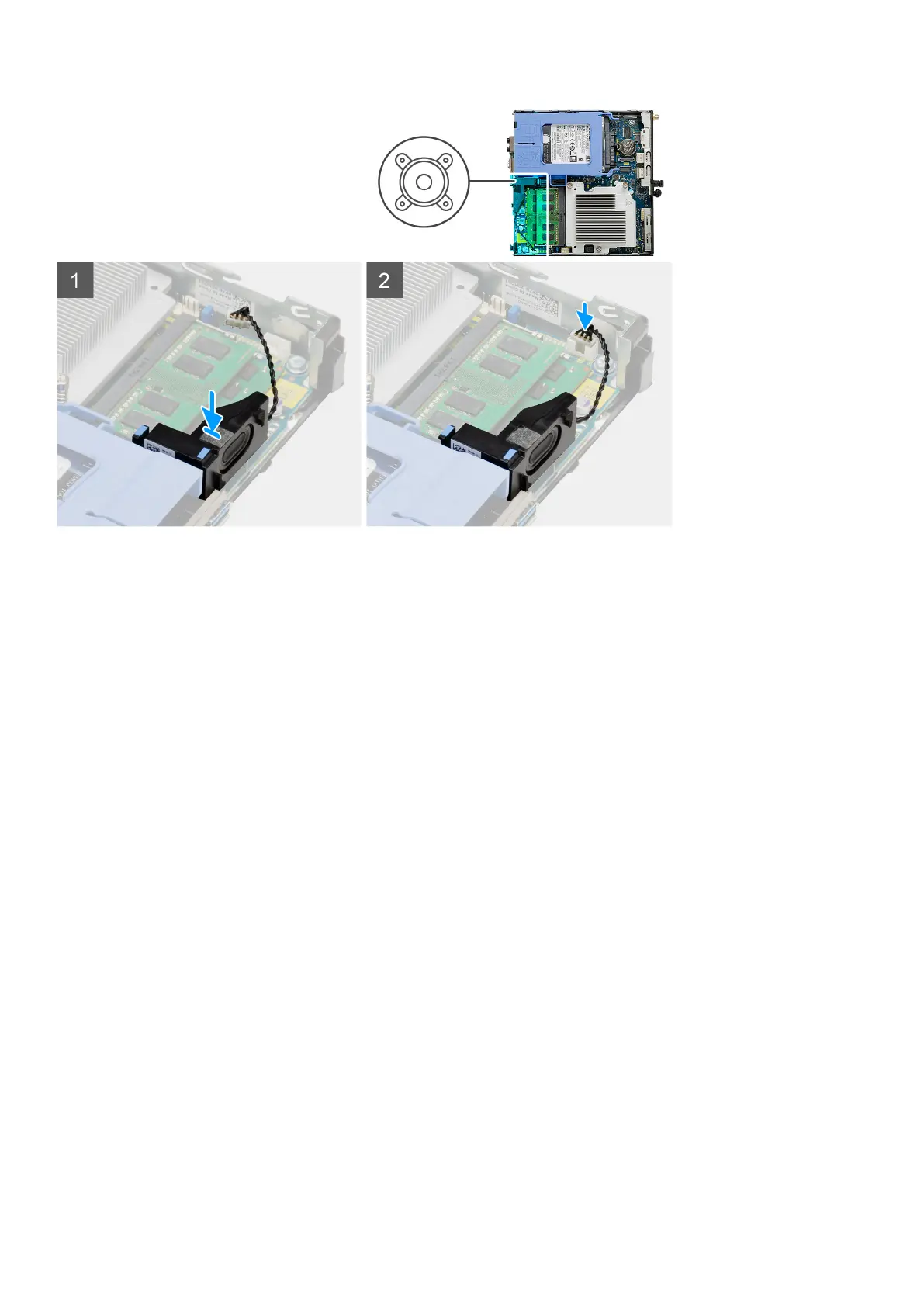

1. Align and insert the speaker into the slot and press it until the release tab clicks.
2. Connect the speaker cable to the system board.
Next steps
1. Install the fan assembly.
2. Install the side cover.
3. Follow the procedure in after working inside your computer.
Optional I/O modules (Type C/ HDMI/VGA/DP/Serial)
Removing optional I/O modules (Type C/ HDMI/VGA/DP/Serial)
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
About this task
The following images indicate the location of the optional I/O Modules and provide a visual representation of the removal
procedure.
Steps
1. Remove the two (M3X3) screws that secure the optional I/O module to the computer chassis.
2. Disconnect the I/O-module cable from the connector on the system board.
3. Remove the I/O module from the computer.
40
