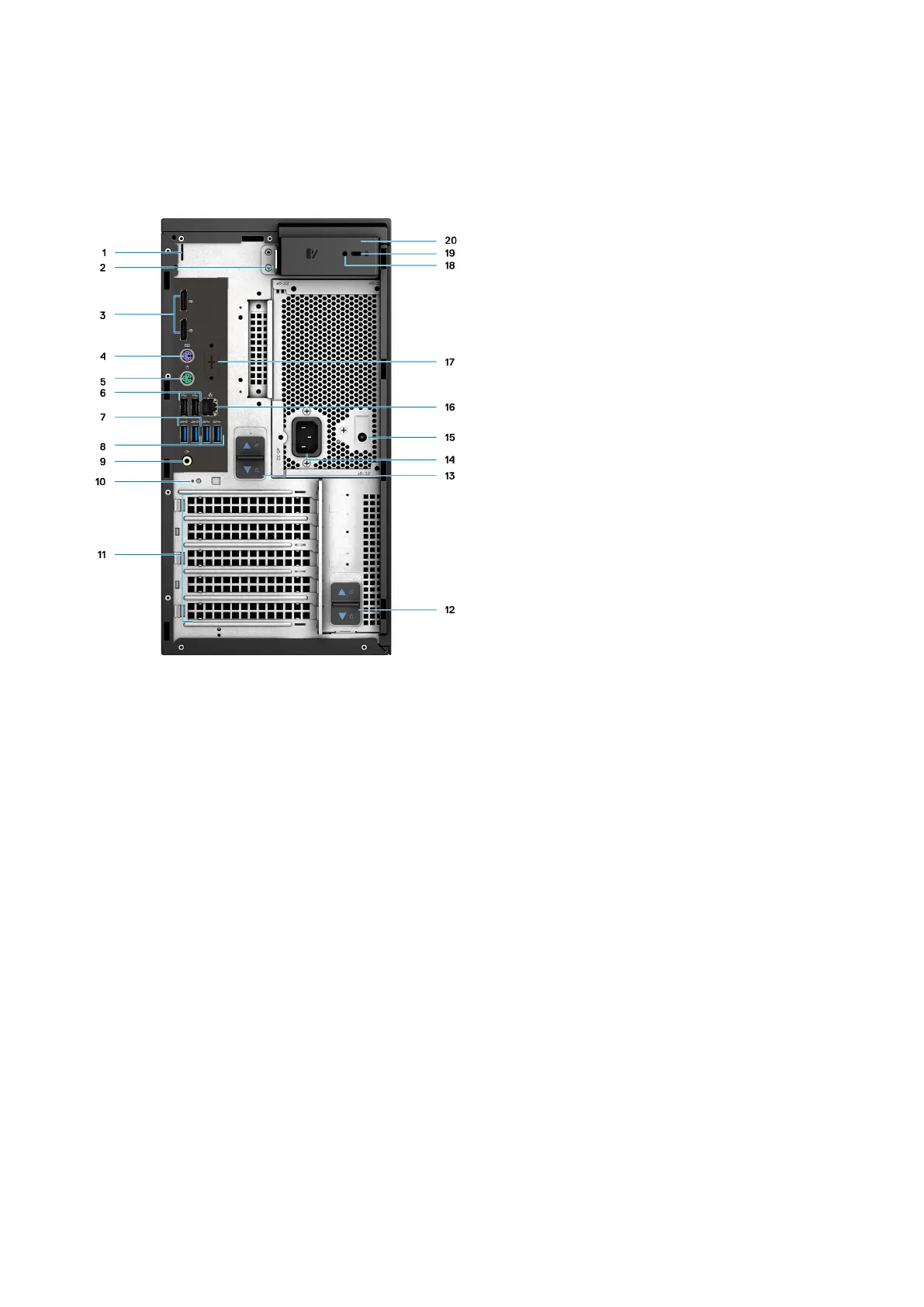

Back view
1. Cable cover slot 2. Padlock loop
3. 2x DisplayPort 1.4 4. PS/2 port (Keyboard)
5. PS/2 port (Mouse) 6. 2x USB 2.0 Type-A ports with Smart Power On
7. 2x USB 3.2 Type A Gen2 (10 Gbps) 8. 2x USB 3.2 Type A Gen1 (5 Gbps)
9. Line-out re-tasking Line-in audio port 10. Cable hook slot
11. PCIe Expansion slots (Placeholder) 12. PSU hinge release latch
13. PSU release latch 14. Power port
15. PSU Built in Self Test (BIST) LED 16. Ethernet port
17. Placeholder for optional VGA, DP, HDMI, Type-C
daughterboards
18. Security screw
19. Kensington Cable lock 20. Cover release latch
12 Chassis
