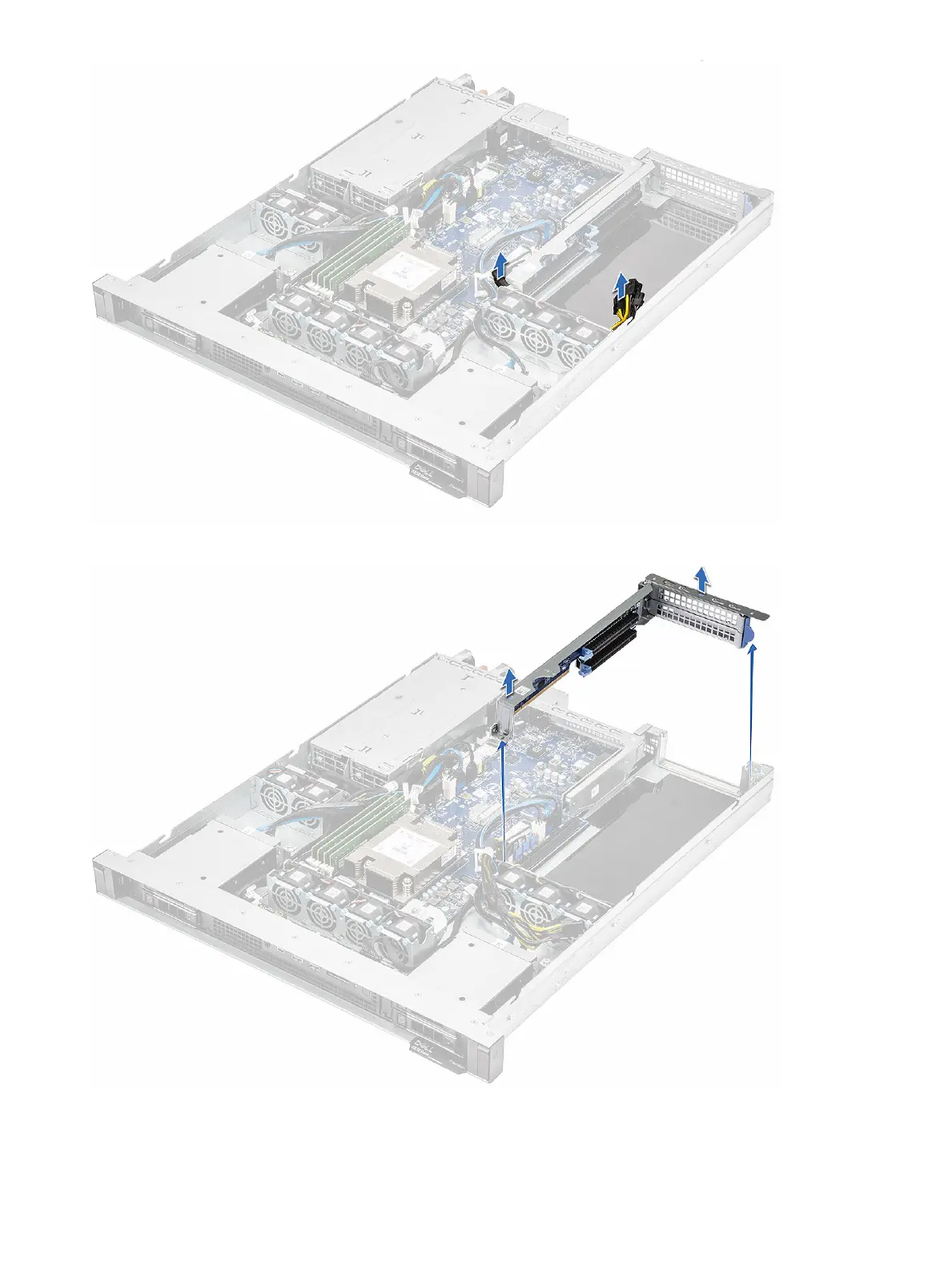

4 Holding the blue contact points remove the raiser1 module from the system.
5 Pull the release tab [1] to open the riser1 slot and lift out the riser2 blank from the slot.
Installing the Dell ultraspeed drive duo card
9
