Installing the Dell ultraspeed drive duo card
1 Follow the procedure in Before working inside your computer.
NOTE: System sounds an alarm for 4 seconds and shut down if top cover is removed while the system is running. The
system will not power on if the top cover is removed.

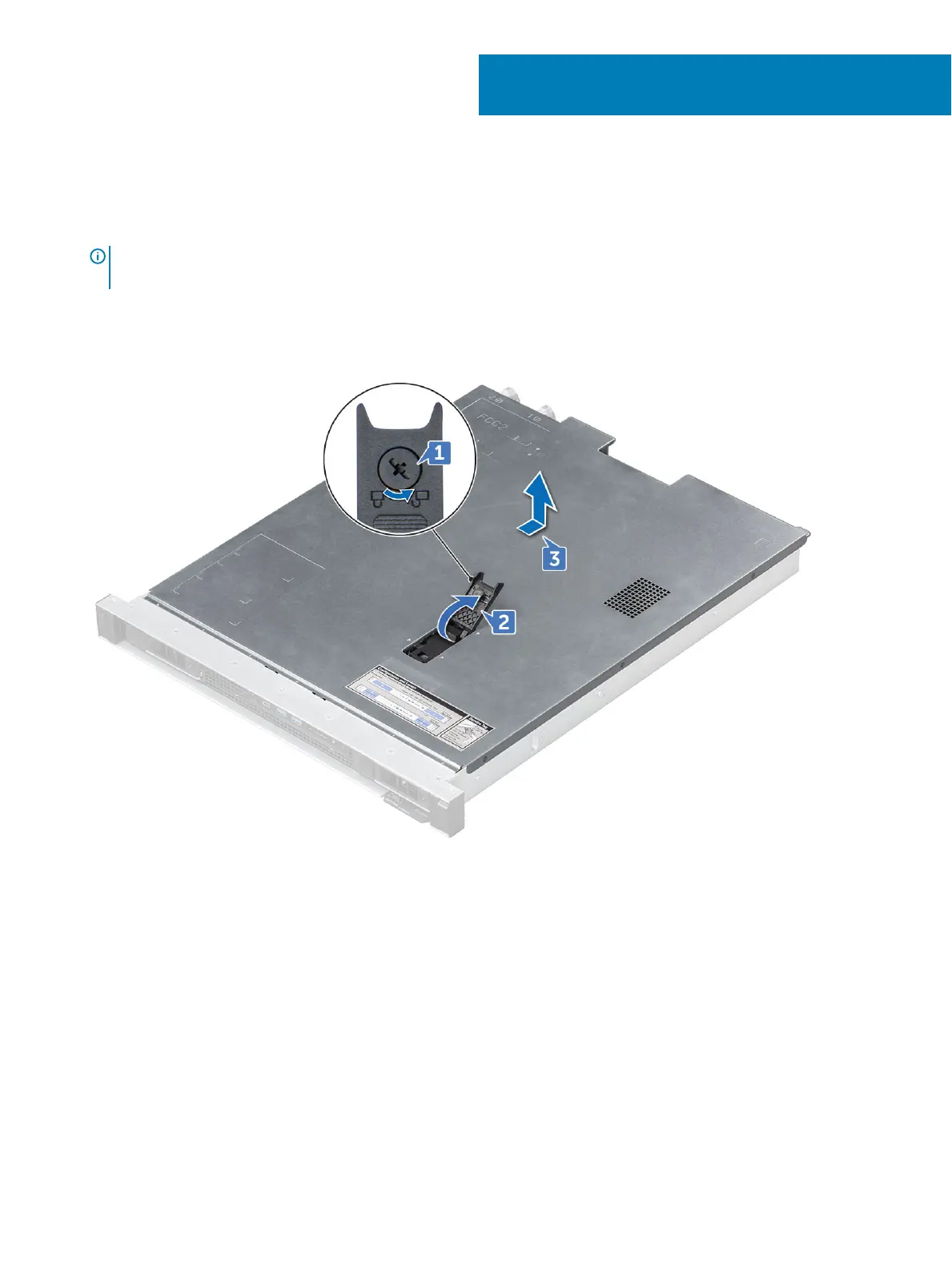

2 To remove the cover:
a Rotate lock on latch with a Phillips screw driver to release the lock [1].
b Pull the latch to release the top cover [2].
c Lift the top cover away [3].
3
Unroute the graphics card power cable from retention clips on graphics card fan cage.
2
8 Installing the Dell ultraspeed drive duo card
