Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the processor fan and heat-sink assembly (for 125 W processors).
NOTE: This procedure applies only to computers shipped with 125 W processors.
About this task
The following images indicate the location of the power-supply unit and provide a visual representation of the removal
procedure.

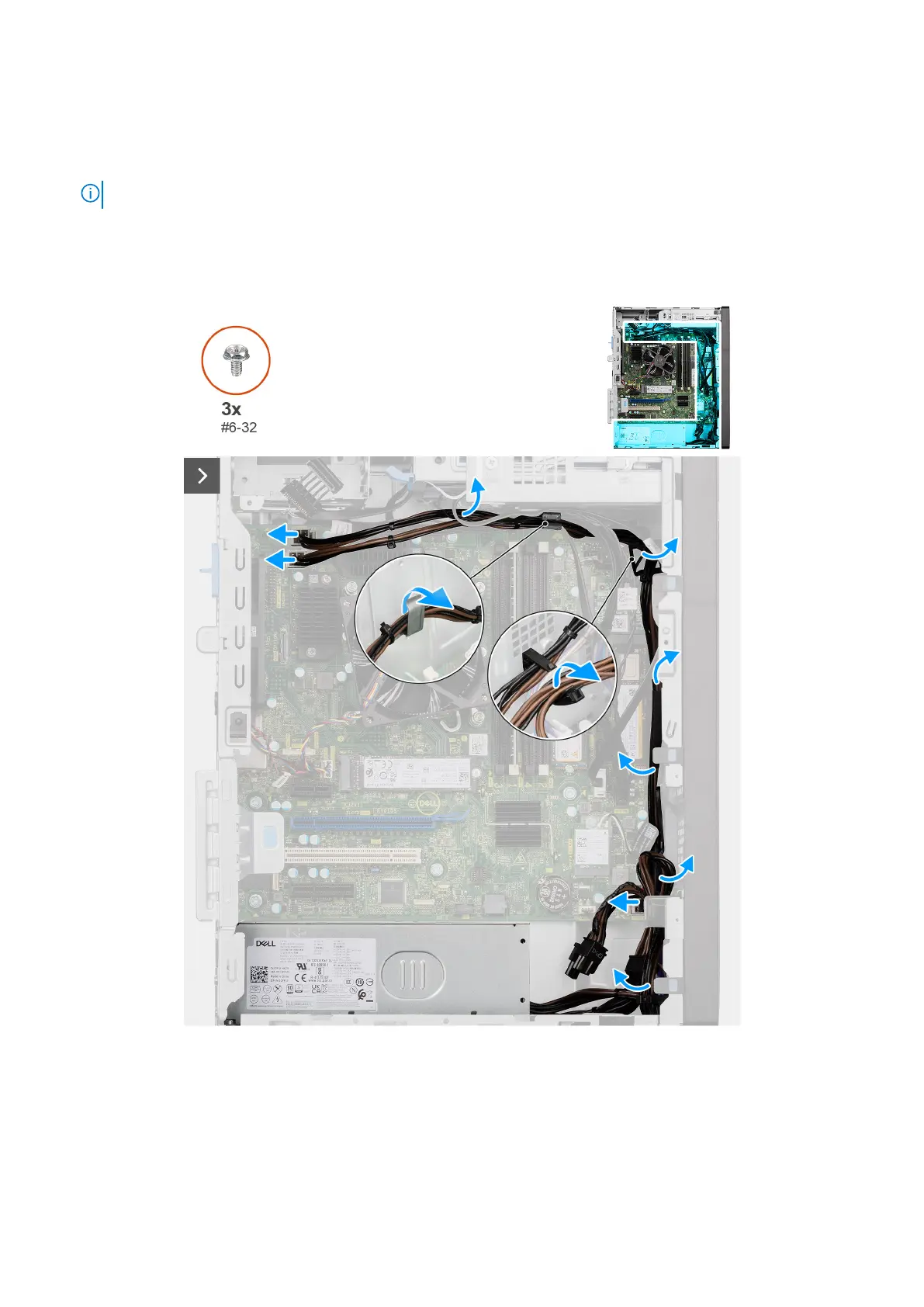

Figure 74. Removing the power-supply unit
Removing and installing Field Replaceable Units (FRUs)
103
