Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the external puck antenna.
4. Remove the wireless card.
About this task
NOTE: This step applies only to computers shipped with an optional external SMA antenna installed.
The following images indicate the location of the external SMA antenna module and provide a visual representation of the
removal procedure.

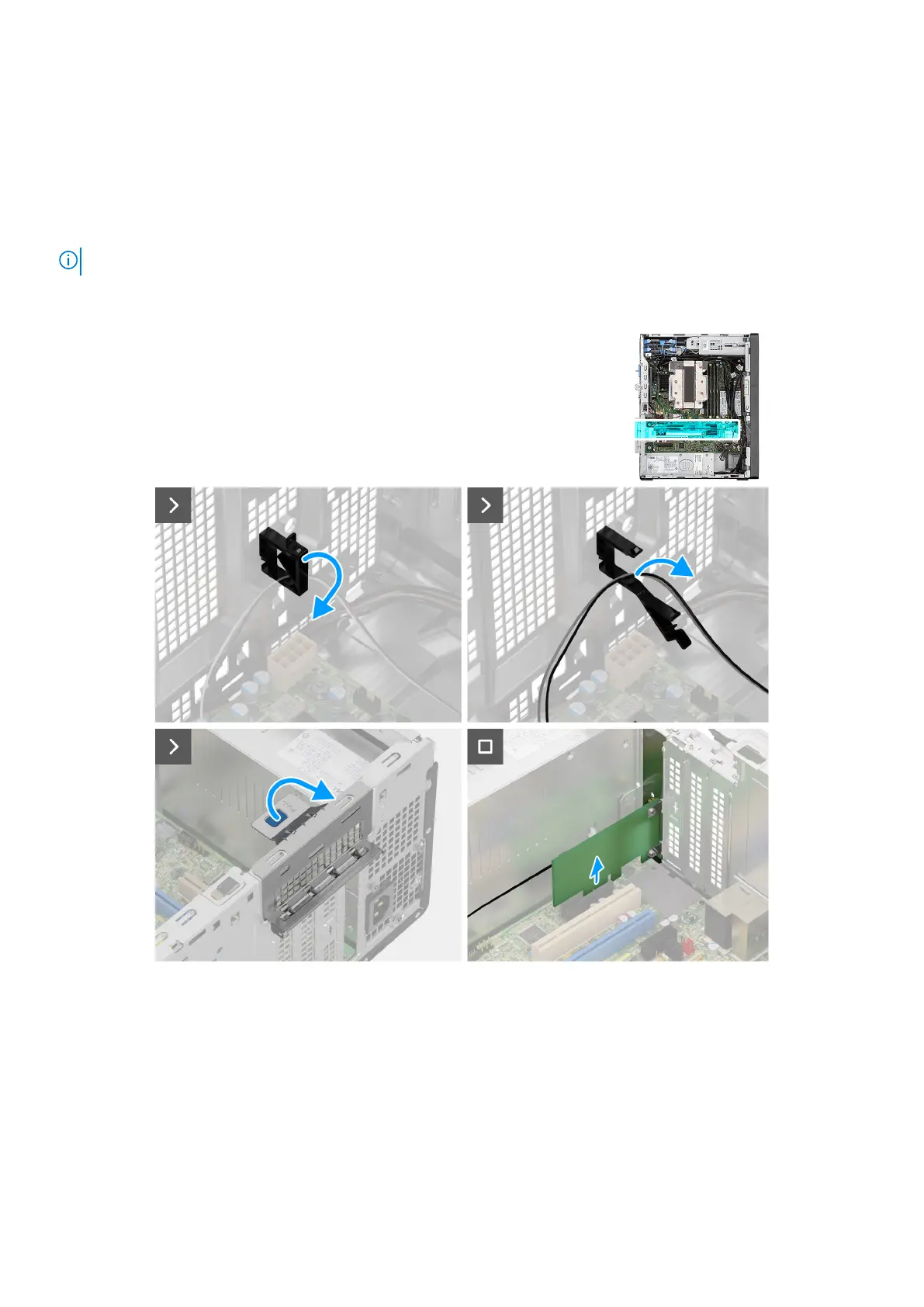

Figure 66. Removing the external SMA antenna module
Removing and installing Field Replaceable Units (FRUs)
95
