64 Adding Parts
www.dell.com | support.dell.com

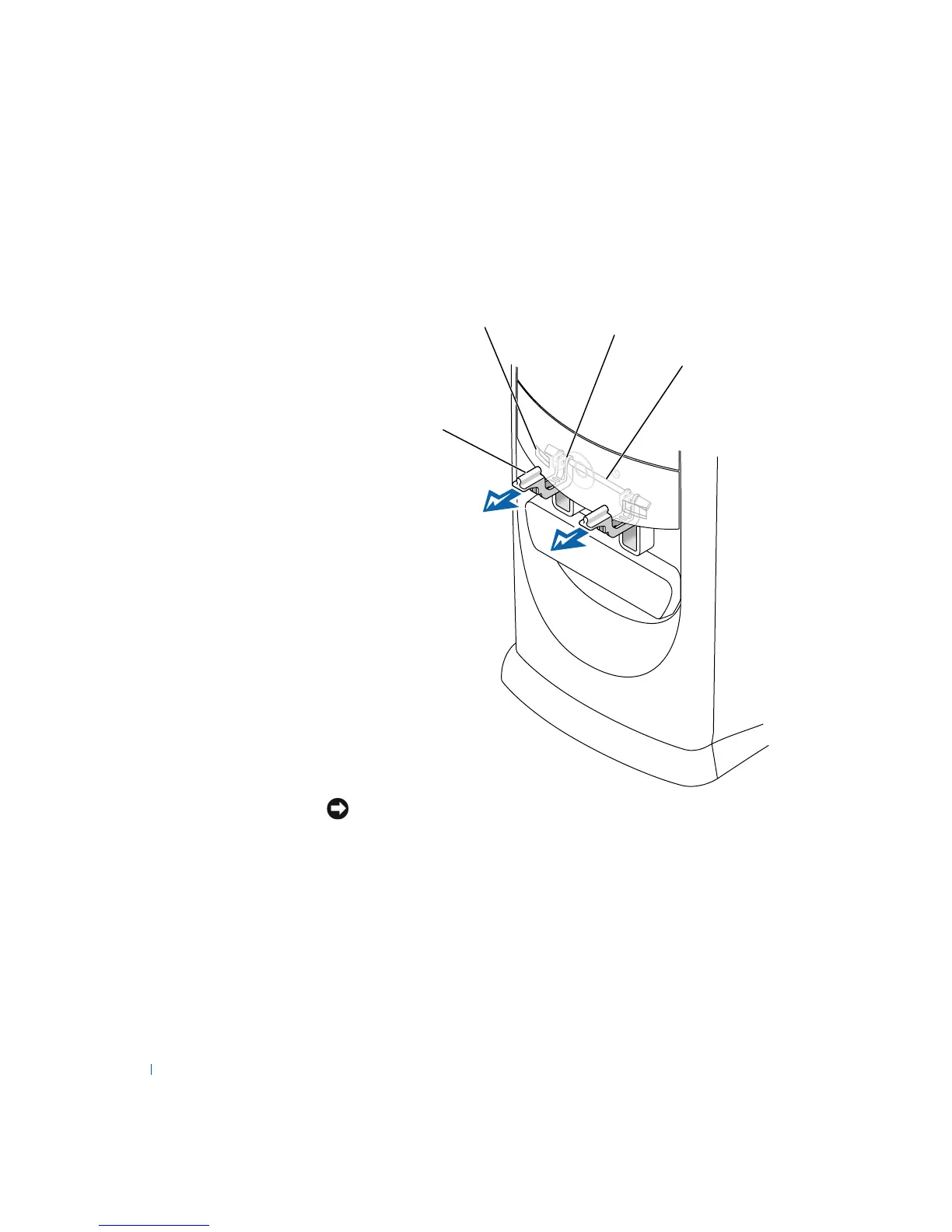

5 Lift both hinge arms to the horizontal position.
6 Use the two view slots to align the pivot bar with the two pivot-bar
slots.
NOTICE: Using excessive force to pull the hinge arms into place may damage
the arms or the front panel.
7
Pull the arms toward you until they snap into place.
If the hinge arms don’t snap back into place on the first attempt,
slightly reposition the arms and try again.
hinge arms in
horizontal
position
pivot bar
view slots (2)
pivot-bar slots (2)
