Dell Dimension 4500 - Page 65

Adding Parts 65
NOTICE: Using excessive force to pull the hinge arms into place may damage
the arms or the front panel.
7
Pull the arms toward you until they snap into place.
If the hinge arms don’t snap back into place on the first attempt,
slightly reposition the arms and try again.

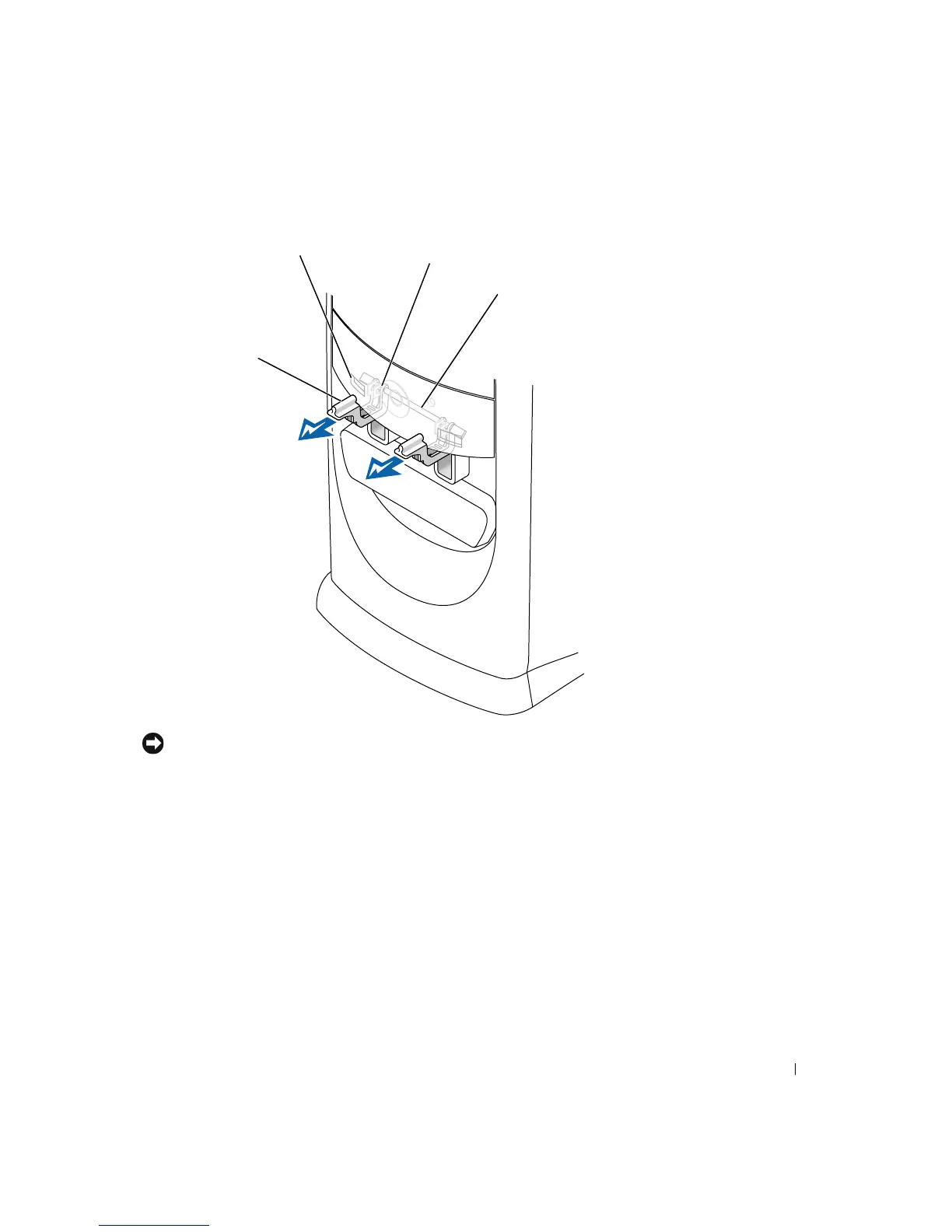

hinge arms in
horizontal
position
pivot bar
view slots (2)
pivot-bar slots (2)
