Removing and Installing Parts 85

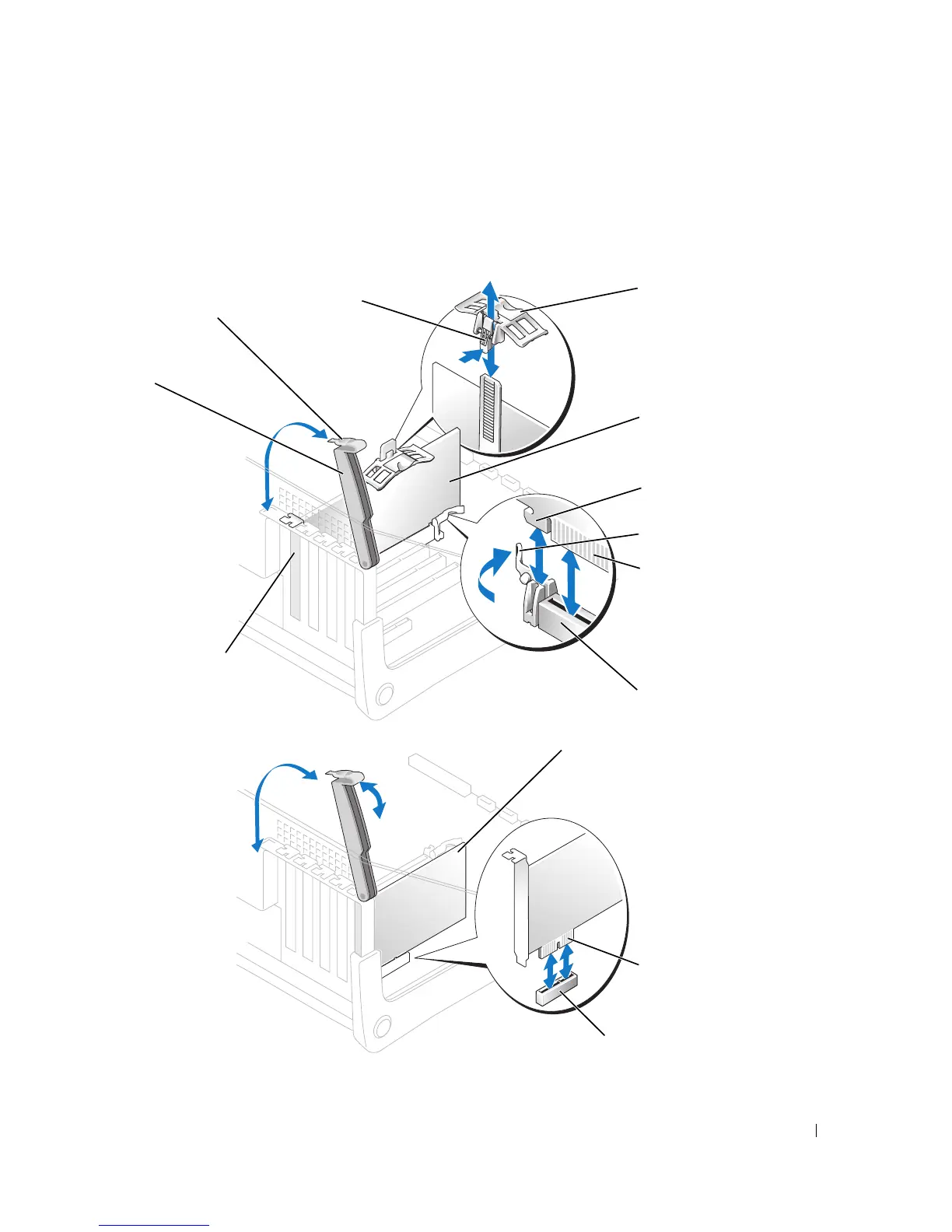

Installing a PCI Express Card
1 Follow the procedures in "Before You Begin" on page 63.
2 Press the lever on the card retention arm and raise the retention arm.
edge connector
card connector
filler bracket
retention
arm
lever
securing tab
securing slot
edge connector
card connector
top of retention
mechanism
tab
x16 card
x1 card
