3. Ensure that the drive-panel insert is correctly seated in the drive panel.

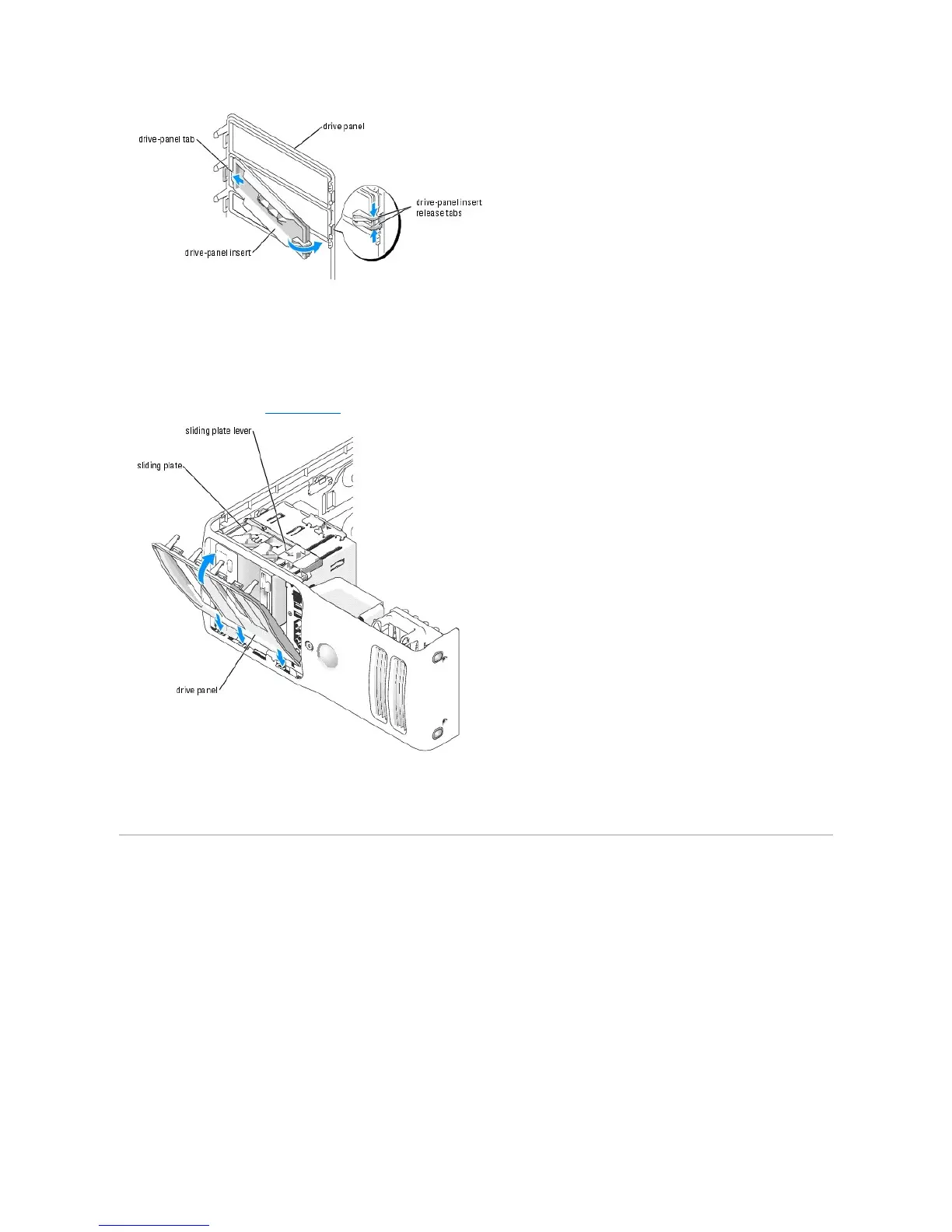

Replacing the Drive Panel
1. Follow the procedures in "Before You Begin."
2. Align the drive panel tabs with the side-door hinges.
3. Rotate the drive panel toward the computer until the sliding plate lever clicks into place and the drive panel snaps into place on the front panel.
Drives
Your computer supports:
l Two hard drives (Serial ATA)
l One floppy drive
l One flexbay drive
l Two CD or DVD drives
Connecting Drive Cables
When you install a drive, you connect two cables—a DC power cable and a data cable—to the back of the drive and to the system board. Some CD/DVD drives
may also have an audio connector; one end of the audio cable will attach to the drive connector and the other will attach to the system board.
Connect hard drives to data connectors labeled "SATA" and connect CD/DVD drives to connectors labeled "IDE".
