Dell Dimension E521 - Removing the Drive-Panel Insert; Installing the Drive Panel

Removing the Drive-Panel Insert

1. Pull the drive-panel insert tab away from the drive panel insert to disengage the insert from the drive panel.

2. Without releasing the tab, pivot the drive-panel insert out and away from the drive panel.

3. Set the drive-panel insert aside in a secure location.

Installing the Drive-Panel Insert

1. Slide the tab on the left side of the drive-panel insert under the center drive-panel tab.

2. Rotate the drive-panel insert into place and snap the drive-panel insert tab over the corresponding tab on the drive panel.

Installing the Drive Panel

1. Follow the procedures in Before You Begin.

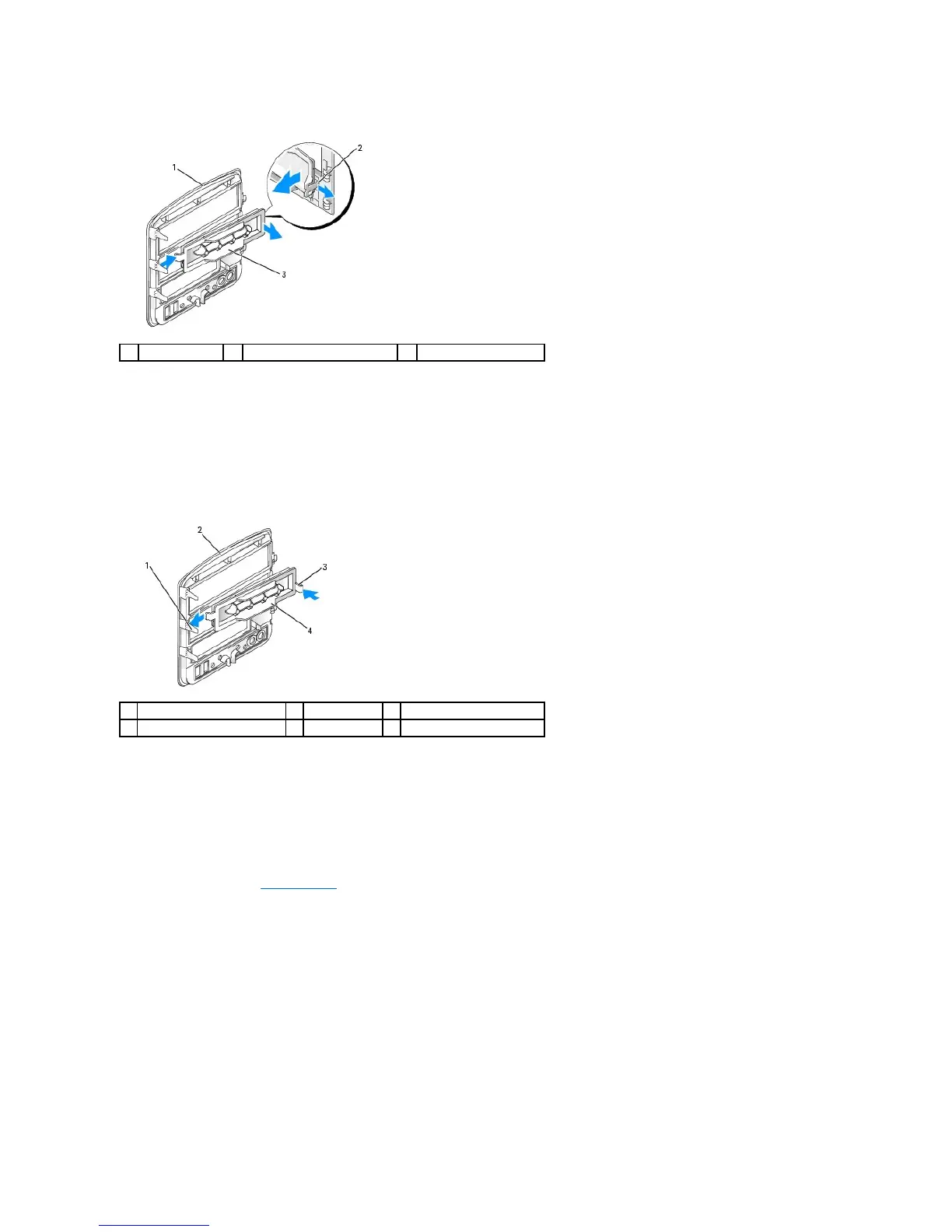

1
drive panel
2
drive-panel insert tab
3
drive-panel insert
1
center drive-panel tab
2
drive panel
3
drive-panel insert tab
4
drive-panel insert




