If you install multiple enclosures and cable them as described here, make sure to set the enclosure mode switch on the
MD1200 front chassis to the top (unified mode) position. For more information, see
Dell PowerVault MD1200 and MD1220
Storage Enclosures Hardware Owner's Manual
at support.dell.com/manuals.
Figure 3. Dell PowerVault MD1200 Rear Chassis

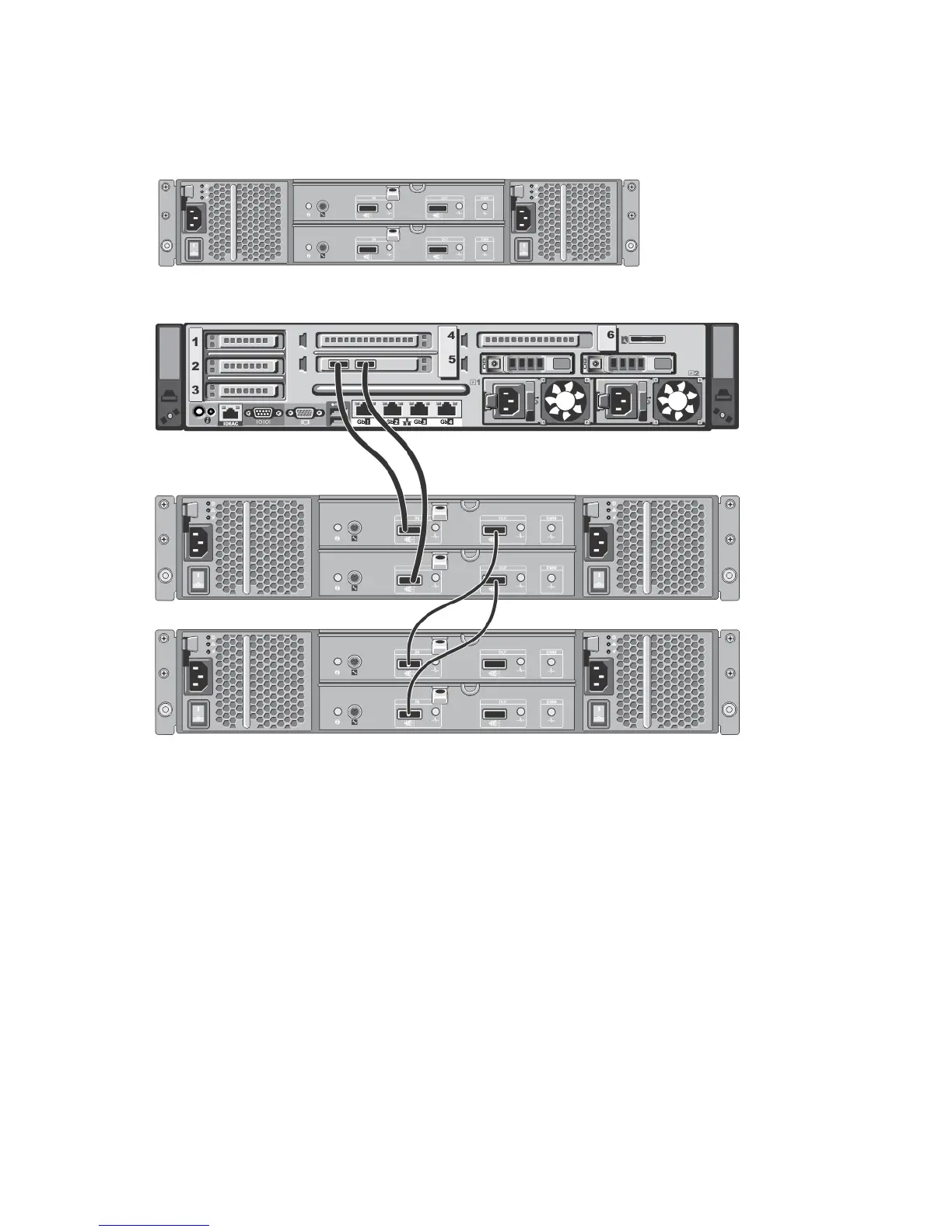

Figure 4. Unified Mode Daisy-Chained Redundant Path Dell PowerVault MD1200 Enclosures
31
