Dell E176FPc
26

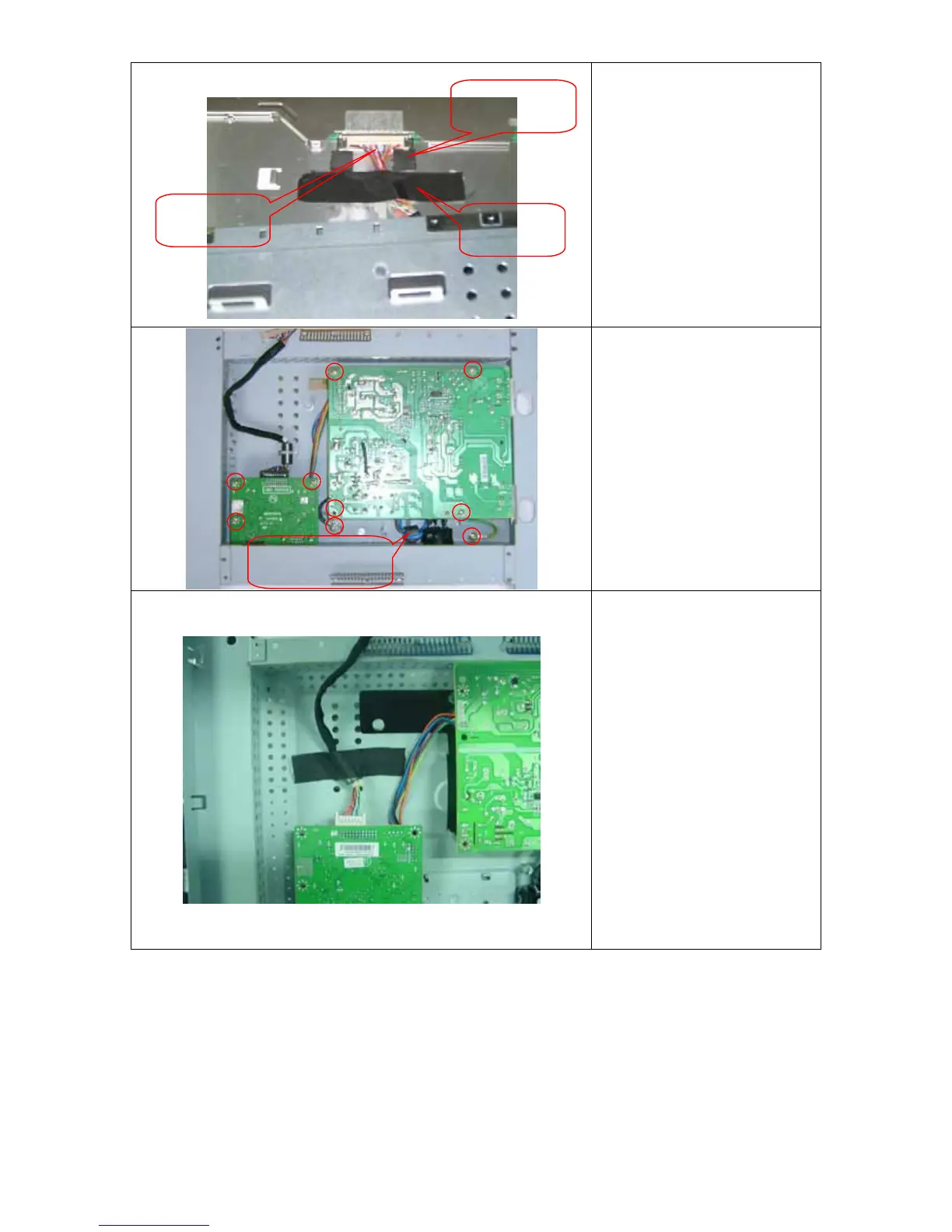

Install:
Fix the LVDS connector by black
tape and EVA washers.
Note: Make LVDS connector’s
metal side adown for HYDIS
AND LG panel and upturned for
AU panel.
Remove the nine screws by
Torque B and remove the power
board and main board.
Note: Magnetism ring should be
laid underneath the power board
Install:
Fix the LVDS cable by black tape
as the figure.
Magnetism ring
Black tape
LVDS Cable
EVA washers
To Next Page
