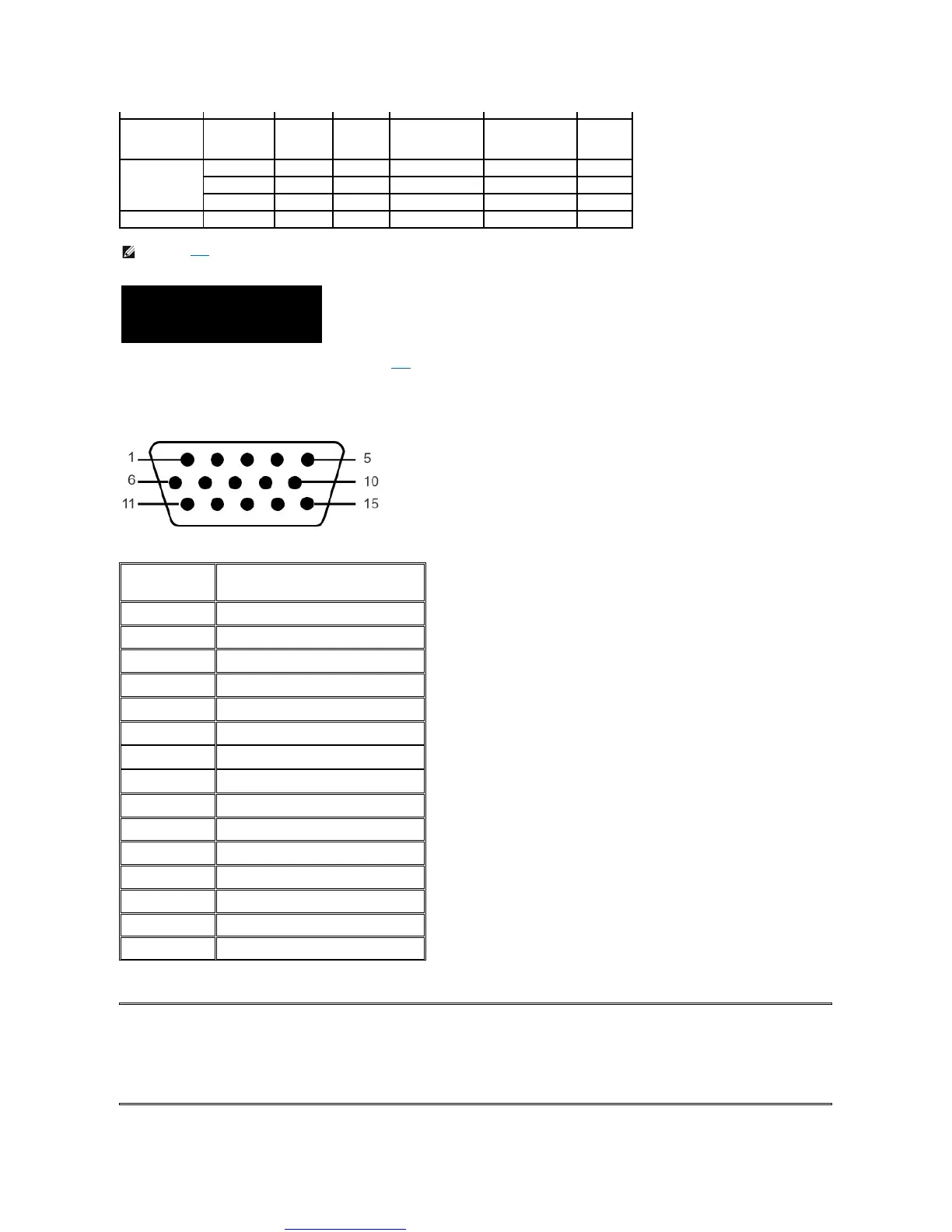

Pin Assignments
VGA Connector
The following table shows pin assignments in the VGA connector:

Plug and Play Capability
You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display
Identification Data (EDID) using Display Data Channel (DDC) protocols so the system can configure itself and optimize the monitor settings. Most monitor
installations are automatic; you can select different settings, if required.
ON
Active
Yes
Yes
maximum 40W
typical 34W
0%
Green
Power Saving
Blanked
No
Yes
<=2W
>80%
Amber
Blanked
Yes
No
<=2W
>80%
Amber
Blanked
No
No
<=2W
>80%
Amber
Switch Off
Blanked
--
--
<=1W
>80%
Off
NOTE: The OSD functions only in the normal operation mode. Otherwise one of the following
messages will appear depending upon the selected input.
In Power SaveMode
Press computer power button
or any key on keyboard or move mouse
Pin
Number
15-pin Side of the
Connected Signal Cable
1
Video-Red
2
Video-Green
3
Video-Blue
4
GND
5
Self-test
6
GND-R
7
GND-G
8
GND-B
9
Computer 5V/3.3V
10
GND-sync
11
GND
12
DDC data
13
H-sync
14
V-sync
15
DDC clock
