Dell E2220H - Pin Assignments

Appendix │ 77

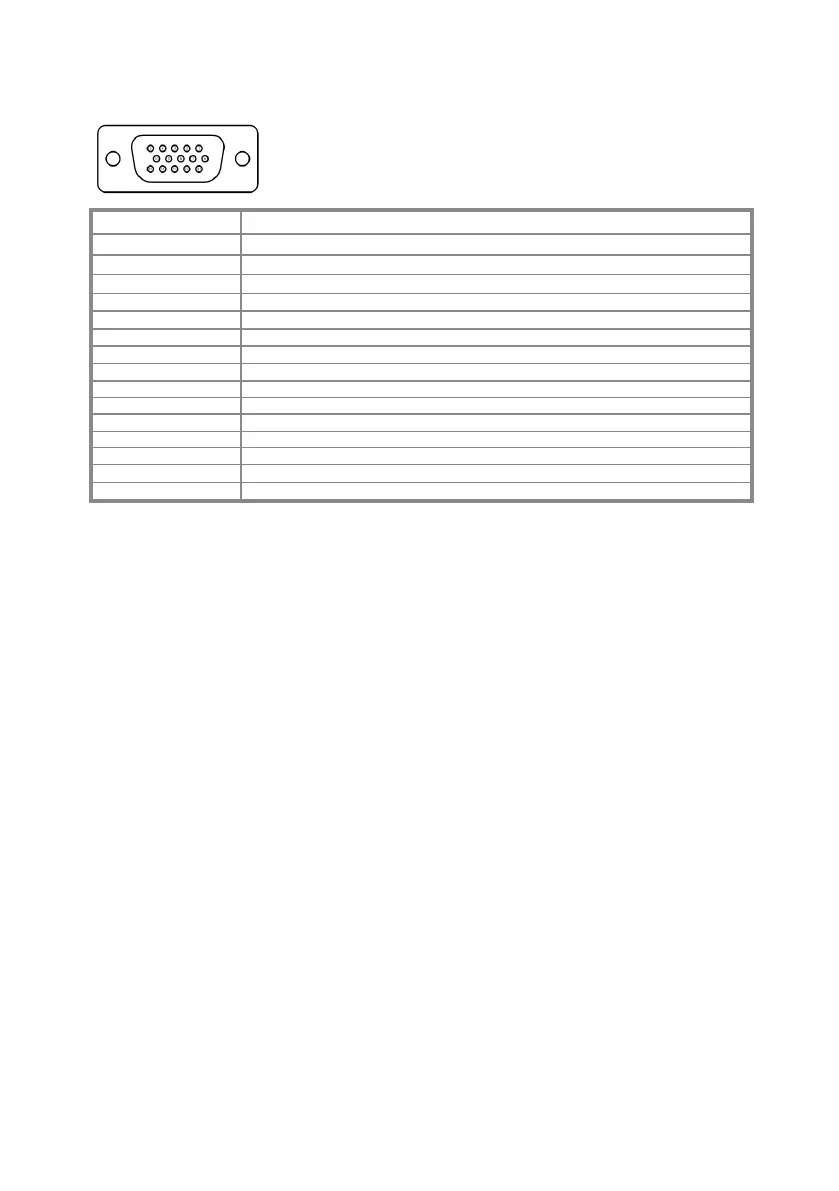

Pin assignments
D-Sub 15-pin connector
Signal Assignment
Pin Number
Video-Red
Video-Green
Video-Blue
GND
Self-test
GND-R
GND-G
GND-B
DDC +5 V
GND-sync
GND
DDC data
H-sync
V-sync
DDC clock
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
