Dell E2223HN User Manual

22 │ Setting up the monitor

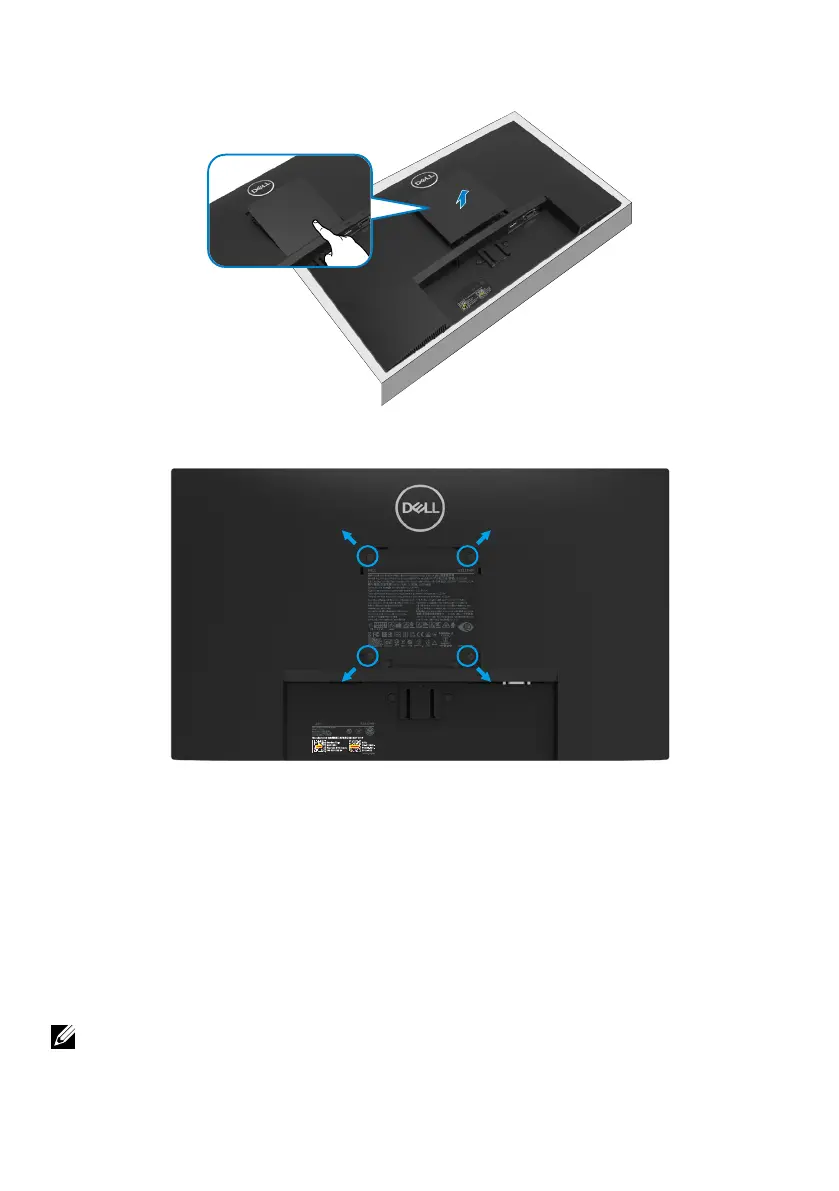

To remove the VESA cover:
Press the dimple on the VESA cover to release it from the back of the display.
Wall Mounting (Optional)
(Screw dimension: M4 x 10 mm).
Refer to the instructions that come with the VESA-compatible base mounting kit.
1. Place the monitor panel on a soft cloth or cushion on a stable flat table.
2. Remove the stand.
3. Use a screwdriver to remove the four screws securing the plastic cover.
4. Attach the mounting bracket from the wall mounting kit to the LCD.
5. Mount the LCD on the wall by following the instructions that came with the base
mounting kit.
NOTE: For use only with UL or CSA or GS-listed wall-mount bracket with
minimum weight/load bearing capacity of 9.04 kg (19.93 lb) for E2223HN.

Dell E2223HN Specifications

General

Panel type	VA
Color gamut	83 %
Pixel pitch	0.249 x 0.241 mm
Screen shape	Flat
Pixel density	103 ppi
Response time	10 ms
Backlight type	LED
Display diagonal	21.45 \
Anti-glare screen	Yes
Display technology	LCD
Native aspect ratio	16:9
Vertical scan range	50 - 75 Hz
Maximum refresh rate	60 Hz
Response time (fast)	5 ms
Viewable size diagonal	544.83 mm
Viewable size, vertical	260.28 mm
Contrast ratio (typical)	3000:1
Display number of colors	16.7 million colors
Display diagonal (metric)	54.48 cm
Viewable size, horizontal	478.66 mm
Display brightness (typical)	250 cd/m²
Tilt angle range	-5 - 21 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Doesn't contain	PVC/BFR
Sustainability certificates	ENERGY STAR, RoHS, TCO
HDMI version	1.4
DisplayPorts quantity	0
Input current	0.7 A
AC input voltage	100 - 240 V
Power supply type	Internal
AC input frequency	50 - 60 Hz
Power consumption (max)	19 W
Power consumption (standby)	0.3 W
Power consumption (typical)	12.83 W
Package depth	355 mm
Package width	565.9 mm
Package height	119.8 mm
Package weight	4140 g
Operating altitude	0 - 5000 m
Non-operating altitude	5000 - 12192 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %
RMS rated power	0 W
Product color	Black
Heavy metals free	Hg (mercury)
Market positioning	Office
Harmonized System (HS) code	85285210

Weight and Dimensions

Bezel width (top)	12.8 mm
Depth (with stand)	171 mm
Width (with stand)	504.26 mm
Height (with stand)	384.17 mm
Weight (with stand)	2590 g
Bezel width (bottom)	16.9 mm
Depth (without stand)	49.64 mm
Height (without stand)	295.38 mm
Weight (without stand)	2260 g
